ACTUATED BALL VALVES....

Ball Valves are used in a wide variety of high pressure applications. Afull unrestricted flow allows no product restrictions through the valve . Thus, allowing easy diversion.

VNE offers TWO and THREE way ball valves made of T316 (CFBM) stainless steel. Ball Valves are available in Manual, Pneumatically Actuated, and Electrically Actuated versions. We also offer a full line of control options. Limit switches, Solenoids, and Positioners can be included with your automated valve assembly. VNE Ball Valves feature PTFE seats that are easily removed. Clamp and Weld ends are standard. Other connections are available upon request. 1/2" "4" sizes are available. VNE Ball Valves meet FDA and 3A requirements.

Ball Valve Specifications....

Important Features....

Size:
1/2˝, 3/4˝, 1˝, 1 1/2˝,
2˝, 2 1/2˝, 3˝, 4˝
Meets 3A and FDA requirements
100% Tested
Valves marked with heat numbers for full identification and traceability
Available with pneumatic and electric actuators
Materials:

Passivated 316 Stainless Steel (ASTM A351 , CF8M)

Connections:

Clamp, Buttweld and Orbital Weld· other connections available upon request

Ordering Specifications...

Specify: • Quantity
• Product description or Part No.
• Size
• Material Type

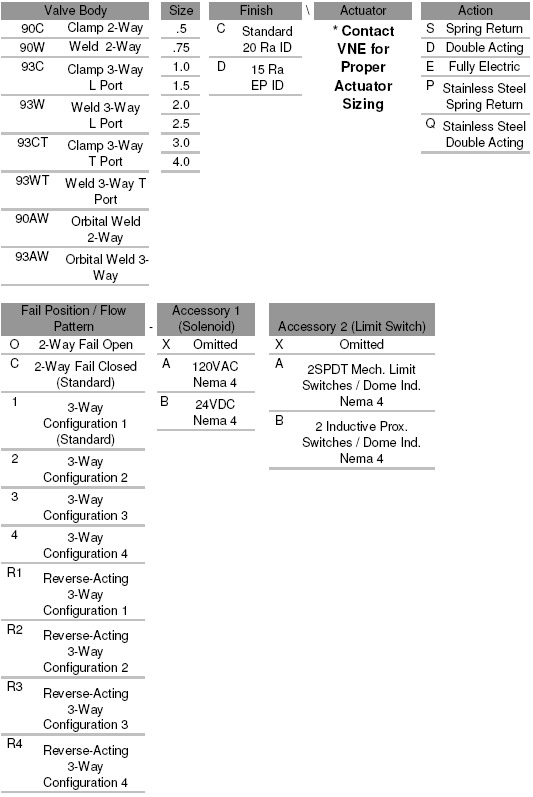

ACTUATED BALL VALVE PART NUMBERING

Example: 93C1.0C\(actuator size)D2
  1.0 Clamp End 3-Way Ball Valve L Port Configuration 2 with Double Acting Actuator

*Conditions such as pressure, temperature, type of media, amount and kind of suspended material in the media, and frequency of operation all affect proper actuator sizing.
