Butterfly Valves - Manual information

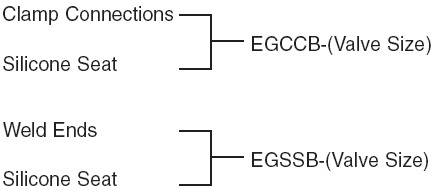

PART NUMBER SEQUENCE WHEN ORDERING COMPLETE VALVES

Note: To order above items in T316 add a 6 before size. IE: EGSSB-6-SIZE

Note: If other Elastomer is required add suffix as follows: (E) EPDM (V) Viton®

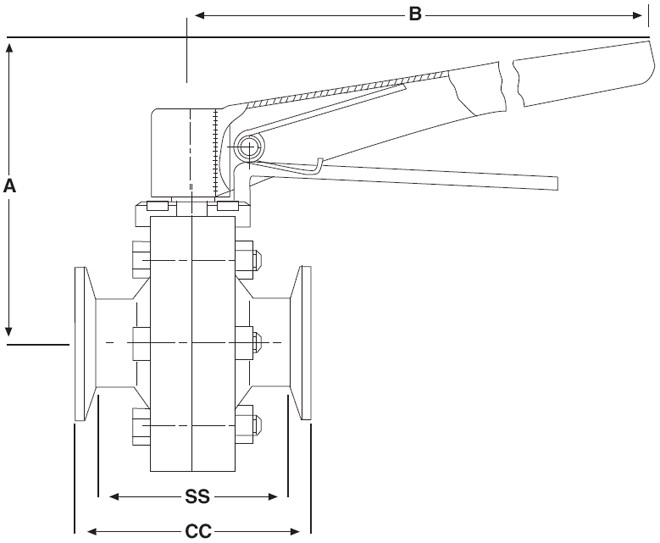

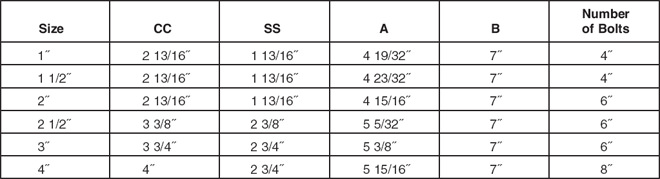

DIMENSIONAL CHART

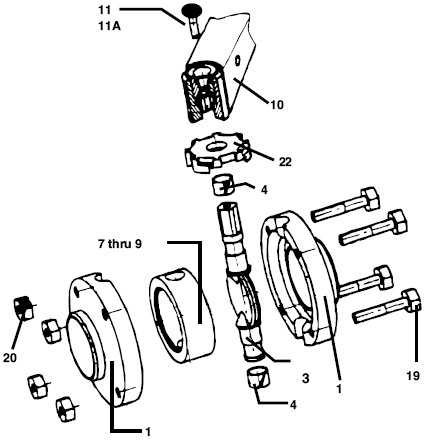

PARTS DRAWING & INFORMATION

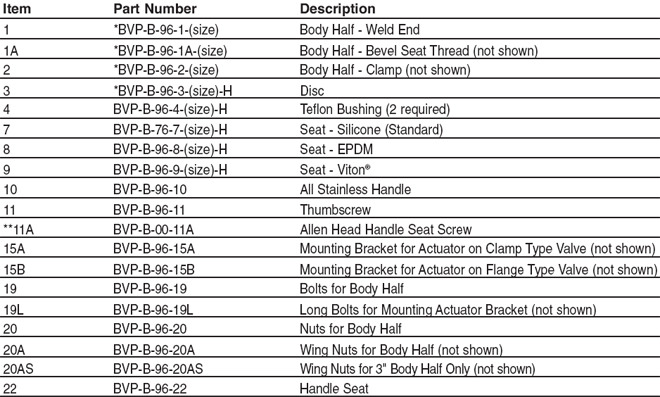

PARTS LIST

*To order above items in T316 stainless steel add a 6 before size. IE: BVP-B-96-1-6-SIZE
