Check Valves - Ball Check Valves

INFORMATION

  • Precision machined seat to ensure positive shut-off
  • Two-piece construction for easier alignment during installation
  • Other connections available upon request
  • Buna-N and Viton® elastomers
  • Polished ID and OD
  • All metal contact surfaces of T316L stainless steel
  • Sizes range from 1 1/2˝ through 3˝
  • Meets 3A sanitary standards
  • Buna Ball & Gaskets Standard

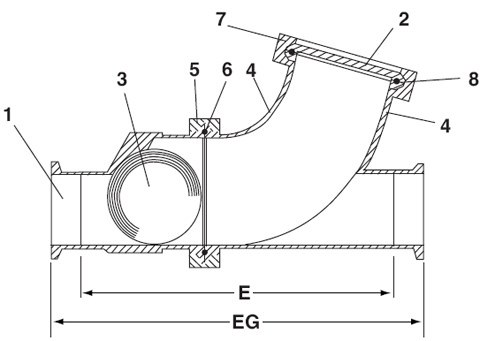

PARTS BREAKDOWN

1. Seat body - (Clamp)

1W. Seat body - (Weld)

2. Cap 3B. Ball-(Buna-N)

3V. Ball-(Viton®)

4. Angle body

4W. Angle body-(Weld)

5. Body clamp

6B. Body gasket-(Buna-N)

6V. Body gasket-(Viton®)

7. Cap clamp

8B. Cap gasket-(Buna-N)

8V. Cap gasket-(Viton®)

PART NUMBER SEQUENCE WHEN ORDERING COMPLETE VALVE:

Clamp connections EG45BY-6 (valve size)
Weld ends E45BYWW-6 (valve size)

Note: If Viton® elastomers are required, add “V” after size

PART NUMBER SEQUENCE WHEN ORDERING REPLACEMENT PARTS:

BCV (item number) - (valve size)
Example: BCV3B-1.5 = Buna-N ball for 1.5 valve

* Redesigned February 2003. Valves purchased after 2/03 use *3.0 dimensions.
