3 - Way Ball Valves - Clamp and Weld Valves

Part Number EG93CCC - 6 - Size = Clamp

Part Number E93WWW - 6 - Size = Weld

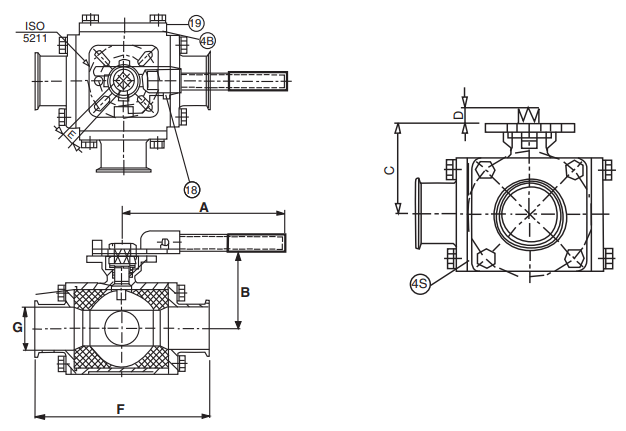

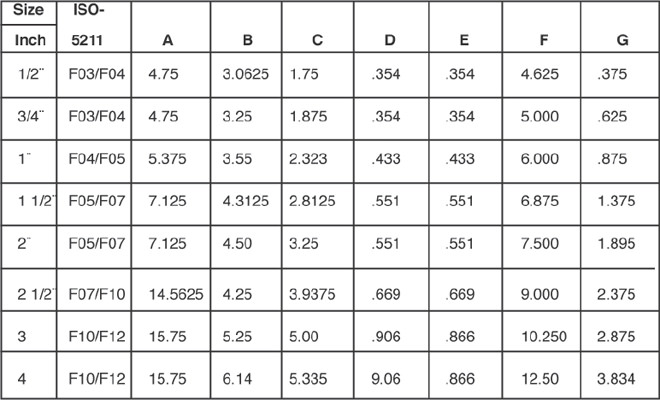

CLAMP AND WELD DIMENSIONS

Part List for Clamp and Weld Valves

BALL VALVE TORQUE...

3-Way full port stainless steel 316 sanitary ball valve clamp and weld end. To convert In / LBS to Foot LBS X .083.

1/2" - Breakaway Torque --- 79 In-LBS
3/4" - Breakaway Torque --- 85 In-LBS
1" - Breakaway Torque --- 110 In-LBS
1 1/2" - Breakaway Torque --- 290 In-LBS
2" - Breakaway Torque --- 680 In-LBS
2 1/2" - Breakaway Torque --- 1287 In-LBS
3" - Breakaway Torque --- 1770 In-LBS
4" - Breakaway Torque --- 2035 In-LBS
