VNE'S MODULAR DESIGN SANITARY PROCESS VALVE

PVA Valve....

This valve has an all stainless one piece stem which seals against the body O-ring for positive shut off. With this design, no seats, disks , or O-rings are fastened to the stem, which could cause product entrapment.

Modular Design....

A modular design is used throughout this entire line of valves.

Sanitary....

PVA valves meet 3A requirements. With this state of the art design, it allows optimum CIP cleaning of all product contact surtaces.

PVA Valve....

  • Available in 1S _3n
  • Made from T316L Stainless Steel
  • Offered as EPDM Standard with Viton " and Silicone options.
  • Available in Shu t off , Divert, and Tank Outlet Con figurations.
  • Available with Clamp, Weld , Bevel Seat, and E-Line connections. Other connections are available upon request.
  • Available in manual or air actuated. An electronic control head can be used with these air operated valves.

PVA Accessories....

  • Micro switches with Solenoid Valve 110 or 24 volt.
  • Indicating lights for open and closed position.
  • Tank Bottom Adapter - For Tank Outlet Valve

PVA Actuator....

  • Maintenance free
  • Instantly reversible from normally open (NO) to normally closed (NC) or vice versa.
  • Instant assembly of electronic control head .
  • Two size Actuators : 4- diameter for 1 1/2~ and 2~ valves. 5H size for 2 1/2H and 3H valves. Made from T304 Stainless Steel.
  • Position indicator stem on top of actuator shows open or closed position.
  • Operating Air Pressure range 72 - 108 PSI.

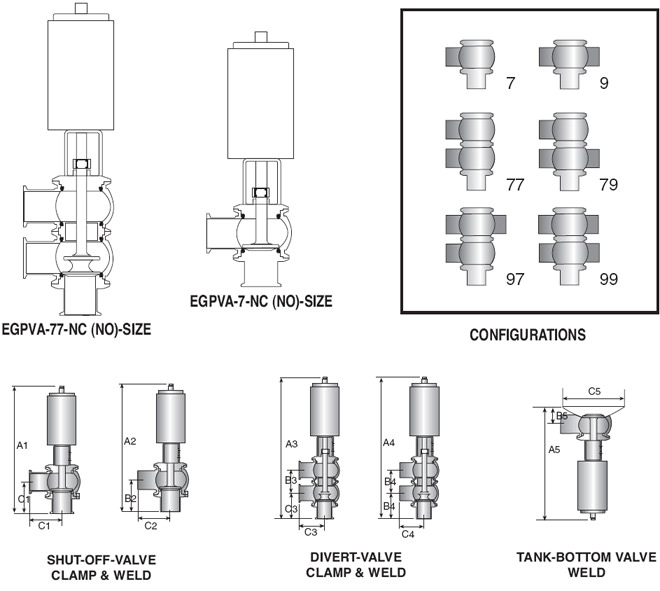

DIMENSION TABLE
