COMPRESSION VALVE
INFORMATION
- One piece stem with O-Ring construction (easy seal replacement and positive shut-off)
- Viton O-Ring standard (others available upon request)
- Clamp connections are standard
|
- Full Polished ID and OD
- All metal contact surfaces of T316L Stainless Steel

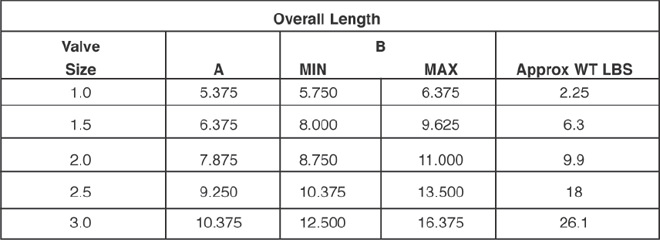

- Sizes range from 1.0·" through 3.0"
|

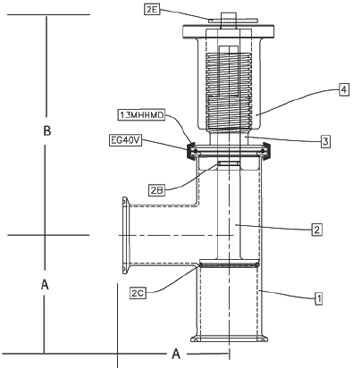

PARTS BREAKDOWN
| 1. |
Body |
|
| 2. |
Stem |
| 2B. |
O-Ring Stem Seal |
| 2C. |
O-Ring Stem Seat |
| 2E |
Cotter Pin |
| 3. |
Bonnet |
| 4. |
Handle |
|
EG40V(SIZE)=Viton Clamp Gasket
13MHHMD(SIZE)-H=Clamp
Max. Product Pressure: 150 PSI
Max Temperature: 200°F
|
Part Number Sequence When Ordering Complete Valve:
EG60C (compression valve) 7 (tee style) R (rubber) 2.0 (size) Example: EG60C - 7 - R - 1.5
Part Number Sequence When Ordering Replacement Parts:
EG60C (compression valve) 7 (tee style) R (rubber) 2.0 (size) - item Example: EG60C - 7 - R - 1.5 - O-Ring stem seat
