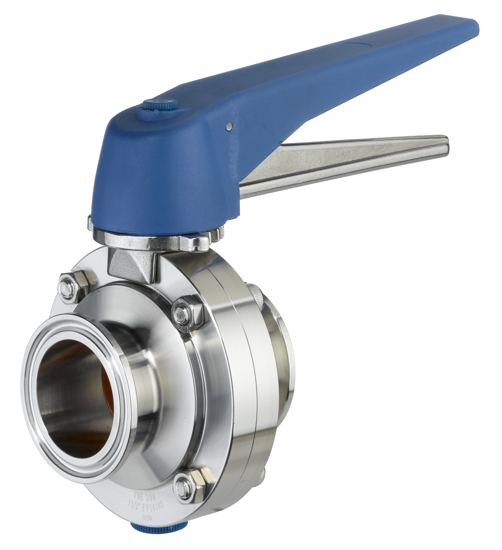

1.0" CLAMP BUTTERFLY VALVE 304 SILICONE SEAT

Attribute name	Attribute value
Material Type	304
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PTH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M_PTH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type

304

Seat Material

Silicone

Connections

Clamp X Clamp

Wall Thickness

0.065

Seat-Material

Silicone

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Cad Model File

51C1.0M_PTH.STEP

A, in.

3.071

B, in.

1.988

D, mm.

65.99
