51C VMON-24V - Clamp End Spring Return Pneumatically Actuated Butterfly Valves With 24V Control Top

Material Type
Size
Seat Material
Actuated Valve Fail Position Flow Pattern

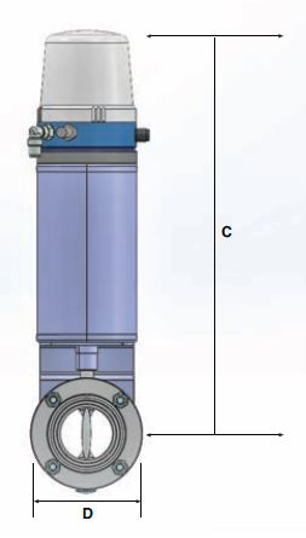

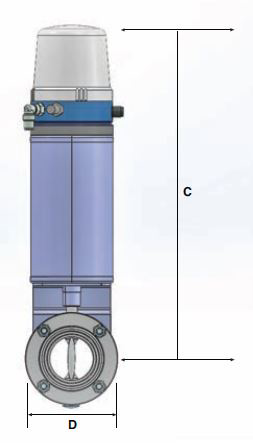

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	E, in.	E, mm.
1	9.928	252.17	9.082	13.748	349.2	3.071	78
1.5	10.09	256.29	9.244	13.91	353.31	3.386	86
2	10.36	263.14	9.514	14.18	360.17	3.937	100
2.5	10.638	270.21	9.792	14.458	367.23	4.528	115.01
3	10.939	277.85	10.093	14.759	374.88	5.04	128.02
4	11.404	289.66	10.558	15.224	386.69	6.063	154

EPDM, Fail Closed

	VNE part number
OD Tube Size	304	316
1	51C1.0AE/VMONC-24V	51C-61.0AE/VMONC-24V
1.5	51C1.5AE/VMONC-24V	51C-61.5AE/VMONC-24V
2	51C2.0AE/VMONC-24V	51C-62.0AE/VMONC-24V
2.5	51C2.5AE/VMONC-24V	51C-62.5AE/VMONC-24V
3	51C3.0AE/VMONC-24V	51C-63.0AE/VMONC-24V
4	51C4.0AE/VMONC-24V	51C-64.0AE/VMONC-24V

EPDM, Fail Open

	VNE part number
OD Tube Size	304	316
1	51C1.0AE/VMONO-24V	51C-61.0AE/VMONO-24V
1.5	51C1.5AE/VMONO-24V	51C-61.5AE/VMONO-24V
2	51C2.0AE/VMONO-24V	51C-62.0AE/VMONO-24V
2.5	--	51C-62.5AE/VMONO-24V
3	--	--
4	--	--

Silicone, Fail Closed

	VNE part number
OD Tube Size	304	316
1	51C1.0AS/VMONC-24V	51C-61.0AS/VMONC-24V
1.5	51C1.5AS/VMONC-24V	51C-61.5AS/VMONC-24V
2	51C2.0AS/VMONC-24V	51C-62.0AS/VMONC-24V
2.5	51C2.5AS/VMONC-24V	51C-62.5AS/VMONC-24V
3	51C3.0AS/VMONC-24V	51C-63.0AS/VMONC-24V
4	51C4.0AS/VMONC-24V	51C-64.0AS/VMONC-24V

Silicone, Fail Open

	VNE part number
OD Tube Size	304	316
1	51C1.0AS/VMONO-24V	51C-61.0AS/VMONO-24V
1.5	51C1.5AS/VMONO-24V	51C-61.5AS/VMONO-24V
2	51C2.0AS/VMONO-24V	51C-62.0AS/VMONO-24V
2.5	--	--
3	--	--
4	--	--

Viton, Fail Closed

	VNE part number
OD Tube Size	304	316
1	51C1.0AV/VMONC-24V	51C-61.0AV/VMONC-24V
1.5	51C1.5AV/VMONC-24V	51C-61.5AV/VMONC-24V
2	51C2.0AV/VMONC-24V	51C-62.0AV/VMONC-24V
2.5	51C2.5AV/VMONC-24V	51C-62.5AV/VMONC-24V
3	51C3.0AV/VMONC-24V	51C-63.0AV/VMONC-24V
4	51C4.0AV/VMONC-24V	51C-64.0AV/VMONC-24V

Viton, Fail Open

	VNE part number
OD Tube Size	304	316
1	51C1.0AV/VMONO-24V	51C-61.0AV/VMONO-24V
1.5	51C1.5AV/VMONO-24V	51C-61.5AV/VMONO-24V
2	51C2.0AV/VMONO-24V	51C-62.0AV/VMONO-24V
2.5	--	51C-62.5AV/VMONO-24V
3	--	--
4	--	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.928
A, mm.	252.17
B, in.	9.082
C, in.	13.748
C, mm.	349.2
E, in.	3.071
E, mm.	78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.09
A, mm.	256.29
B, in.	9.244
C, in.	13.91
C, mm.	353.31
E, in.	3.386
E, mm.	86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.36
A, mm.	263.14
B, in.	9.514
C, in.	14.18
C, mm.	360.17
E, in.	3.937
E, mm.	100

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.939
A, mm.	277.85
B, in.	10.093
C, in.	14.759
C, mm.	374.88
E, in.	5.04
E, mm.	128.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Viton
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Silicone
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	24 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	24 VDC - VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.404
A, mm.	289.66
B, in.	10.558
C, in.	15.224
C, mm.	386.69
E, in.	6.063
E, mm.	154
