31TT - Thread BS X Thread BS Concentric Reducer

Material Type
Size

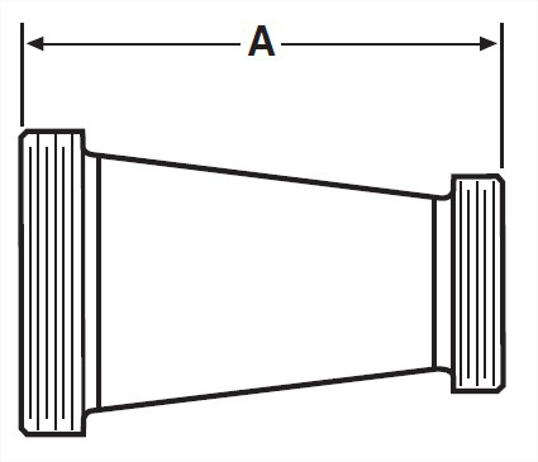

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1.5X1.0	3.375	85.73	0.5
2.0X1.0	5.406	137.31	0.8
2.0X1.5	3.406	86.51	0.7
2.5X1.5	5.531	140.49	1.12
2.5X2.0	3.562	90.47	1.08
3.0X2.0	5.656	143.66	1.28
3.0X2.5	3.781	96.04	1.72
4.0X2.5	7.843	199.21	2.92
4.0X3.0	5.937	150.8	2.76

	VNE part number
OD Tube Size	304	316L
1.5X1.0	31TT1.5X1.0	31TT-6L1.5X1.0
2.0X1.0	31TT2.0X1.0	31TT-6L2.0X1.0
2.0X1.5	31TT2.0X1.5	31TT-6L2.0X1.5
2.5X1.5	31TT2.5X1.5	31TT-6L2.5X1.5
2.5X2.0	31TT2.5X2.0	31TT-6L2.5X2.0
3.0X2.0	31TT3.0X2.0	31TT-6L3.0X2.0
3.0X2.5	31TT3.0X2.5	31TT-6L3.0X2.5
4.0X2.5	31TT4.0X2.5	31TT-6L4.0X2.5
4.0X3.0	31TT4.0X3.0	31TT-6L4.0X3.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.375
A, mm.	85.73
Product Weight	0.5

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.406
A, mm.	137.31
Product Weight	0.8

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.406
A, mm.	86.51
Product Weight	0.7

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.531
A, mm.	140.49
Product Weight	1.12

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.562
A, mm.	90.47
Product Weight	1.08

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.656
A, mm.	143.66
Product Weight	1.28

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.781
A, mm.	96.04
Product Weight	1.72

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	7.843
A, mm.	199.21
Product Weight	2.92

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	31TT4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.937
A, mm.	150.8
Product Weight	2.76

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.375
A, mm.	85.73
Product Weight	0.5

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.406
A, mm.	137.31
Product Weight	0.8

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.406
A, mm.	86.51
Product Weight	0.7

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.531
A, mm.	140.49
Product Weight	1.12

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.562
A, mm.	90.47
Product Weight	1.08

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.656
A, mm.	143.66
Product Weight	1.28

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	3.781
A, mm.	96.04
Product Weight	1.72

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	7.843
A, mm.	199.21
Product Weight	2.92

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	31TT4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31TT
Wayland Part Number	W31TT
Dixon Part Number	31TT
Sanitary Solutions Part Number	SS31TT
Sanitube Part Number	31TT
A, in.	5.937
A, mm.	150.8
Product Weight	2.76
