EG32TC - Thread BS X Clamp Eccentric Reducer

EG32TC - Thread BS X Clamp Eccentric Reducer

Material Type
Size

View Dimensions

Dimensions

EG32TC - Thread BS X Clamp Eccentric Reducer

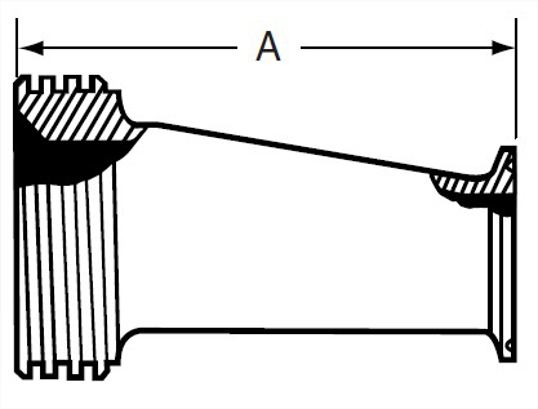

OD Tube Size	A, in.	A, mm.
1.5X1.0	3.187	80.95
2.0X1.0	5.218	132.54
2.0X1.5	3.218	81.74
2.5X1.5	5.343	135.71
2.5X2.0	3.343	84.91
3.0X2.0	5.437	138.1
3.0X2.5	3.437	87.3
4.0X2.5	7.5	190.5
4.0X3.0	5.5	139.7

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	EG32TC1.5X1.0	EG32TC6L1.5X1.0
2.0X1.0	EG32TC2.0X1.0	EG32TC6L2.0X1.0
2.0X1.5	EG32TC2.0X1.5	EG32TC6L2.0X1.5
2.5X1.5	EG32TC2.5X1.5	EG32TC6L2.5X1.5
2.5X2.0	EG32TC2.5X2.0	EG32TC6L2.5X2.0
3.0X2.0	EG32TC3.0X2.0	EG32TC6L3.0X2.0
3.0X2.5	EG32TC3.0X2.5	EG32TC6L3.0X2.5
4.0X2.5	EG32TC4.0X2.5	EG32TC6L4.0X2.5
4.0X3.0	EG32TC4.0X3.0	EG32TC6L4.0X3.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-1.5X1-304
A, in.	3.187
A, mm.	80.95

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2X1-304
A, in.	5.218
A, mm.	132.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2X1.5-304
A, in.	3.218
A, mm.	81.74

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2.5X1.5-304
A, in.	5.343
A, mm.	135.71

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2.5X2-304
A, in.	3.343
A, mm.	84.91

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-3X2-304
A, in.	5.437
A, mm.	138.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-3X2.5-304
A, in.	3.437
A, mm.	87.3

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-4X2.5-304
A, in.	7.5
A, mm.	190.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-4X3-304
A, in.	5.5
A, mm.	139.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-1.5X1-316
A, in.	3.187
A, mm.	80.95

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2X1-316
A, in.	5.218
A, mm.	132.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2X1.5-316
A, in.	3.218
A, mm.	81.74

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2.5X1.5-316
A, in.	5.343
A, mm.	135.71

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-2.5X2-316
A, in.	3.343
A, mm.	84.91

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-3X2-316
A, in.	5.437
A, mm.	138.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-3X2.5-316
A, in.	3.437
A, mm.	87.3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-4X2.5-316
A, in.	7.5
A, mm.	190.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32TMP-4X3-316
A, in.	5.5
A, mm.	139.7

Click here to request 3D Step File
