74-CAP - Din 11851 Liner Cap

Material Type
Size

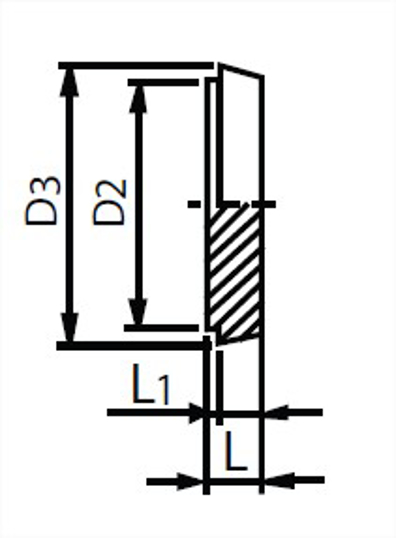

View Dimensions

Dimensions

OD Tube Size	D2, in.	D2, mm.	D3, in.	D3, mm.	L, in.	L, mm.	L1, in.	L1, mm.	Product Weight
DN10	0.74	18.8	0.89	22.5	0.37	9.5	0.14	3.5	0.04
DN15	0.98	24.8	1.12	28.5	0.37	9.5	0.14	3.5	0.08
DN20	1.21	30.8	1.44	36.5	0.45	11.5	0.14	3.5	0.16
DN25	1.41	35.8	1.73	44	0.53	13.5	0.14	3.5	0.39
DN32	1.65	41.8	1.97	50	0.53	13.5	0.14	3.5	0.39
DN40	1.92	48.8	2.2	56	0.53	13.5	0.14	3.5	0.5
DN50	2.43	61.8	2.7	68.5	0.57	14.5	0.14	3.5	0.82
DN65	3.14	79.8	3.39	86	0.65	16.5	0.18	4.5	1.48
DN80	3.69	93.8	3.94	100	0.65	16.5	0.18	4.5	2
DN100	4.52	114.8	4.76	121	0.81	20.5	0.22	5.5	3.86
DN125	5.43	137.8	5.91	150	0.89	22.5	0.22	5.5	--
DN150	6.45	163.8	6.93	176	0.96	24.5	0.26	6.5	--

	VNE part number
OD Tube Size	304	316L
DN10	74-CAP NW10	74-CAP-6-NW10
DN15	74-CAP NW15	74-CAP-6-NW15
DN20	74-CAP NW20	74-CAP-6-NW20
DN25	74-CAP NW25	74-CAP-6-NW25
DN32	74-CAP NW32	74-CAP-6-NW32
DN40	74-CAP NW40	74-CAP-6-NW40
DN50	74-CAP NW50	74-CAP-6-NW50
DN65	74-CAP NW65	74-CAP-6-NW65
DN80	74-CAP NW80	74-CAP-6-NW80
DN100	74-CAP NW100	74-CAP-6-NW100
DN125	74-CAP NW125	74-CAP-6-NW125
DN150	74-CAP NW150	74-CAP-6-NW150

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN10
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN10
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	0.74
D2, mm.	18.8
D3, in.	0.89
D3, mm.	22.5
L, in.	0.37
L, mm.	9.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.04

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN15
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	0.98
D2, mm.	24.8
D3, in.	1.12
D3, mm.	28.5
L, in.	0.37
L, mm.	9.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN20
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	1.21
D2, mm.	30.8
D3, in.	1.44
D3, mm.	36.5
L, in.	0.45
L, mm.	11.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN25
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN25
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	1.41
D2, mm.	35.8
D3, in.	1.73
D3, mm.	44
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.39

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN32
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	1.65
D2, mm.	41.8
D3, in.	1.97
D3, mm.	50
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.39

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN40
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	1.92
D2, mm.	48.8
D3, in.	2.2
D3, mm.	56
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN50
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	2.43
D2, mm.	61.8
D3, in.	2.7
D3, mm.	68.5
L, in.	0.57
L, mm.	14.5
L1, in.	0.14
L1, mm.	3.5
Product Weight	0.82

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN65
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	3.14
D2, mm.	79.8
D3, in.	3.39
D3, mm.	86
L, in.	0.65
L, mm.	16.5
L1, in.	0.18
L1, mm.	4.5
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN80
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN80
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	3.69
D2, mm.	93.8
D3, in.	3.94
D3, mm.	100
L, in.	0.65
L, mm.	16.5
L1, in.	0.18
L1, mm.	4.5
Product Weight	2

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN100
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN100
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	4.52
D2, mm.	114.8
D3, in.	4.76
D3, mm.	121
L, in.	0.81
L, mm.	20.5
L1, in.	0.22
L1, mm.	5.5
Product Weight	3.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN125
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	5.43
D2, mm.	137.8
D3, in.	5.91
D3, mm.	150
L, in.	0.89
L, mm.	22.5
L1, in.	0.22
L1, mm.	5.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN150
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN150
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D2, in.	6.45
D2, mm.	163.8
D3, in.	6.93
D3, mm.	176
L, in.	0.96
L, mm.	24.5
L1, in.	0.26
L1, mm.	6.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN10
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN10
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	0.74
D2, mm.	18.8
D3, in.	0.89
D3, mm.	22.5
L, in.	0.37
L, mm.	9.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN15
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	0.98
D2, mm.	24.8
D3, in.	1.12
D3, mm.	28.5
L, in.	0.37
L, mm.	9.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN20
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	1.21
D2, mm.	30.8
D3, in.	1.44
D3, mm.	36.5
L, in.	0.45
L, mm.	11.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN25
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN25
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	1.41
D2, mm.	35.8
D3, in.	1.73
D3, mm.	44
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN32
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	1.65
D2, mm.	41.8
D3, in.	1.97
D3, mm.	50
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN40
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	1.92
D2, mm.	48.8
D3, in.	2.2
D3, mm.	56
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN50
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	2.43
D2, mm.	61.8
D3, in.	2.7
D3, mm.	68.5
L, in.	0.57
L, mm.	14.5
L1, in.	0.14
L1, mm.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN65
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	3.14
D2, mm.	79.8
D3, in.	3.39
D3, mm.	86
L, in.	0.65
L, mm.	16.5
L1, in.	0.18
L1, mm.	4.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN80
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN80
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	3.69
D2, mm.	93.8
D3, in.	3.94
D3, mm.	100
L, in.	0.65
L, mm.	16.5
L1, in.	0.18
L1, mm.	4.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN100
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN100
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	4.52
D2, mm.	114.8
D3, in.	4.76
D3, mm.	121
L, in.	0.81
L, mm.	20.5
L1, in.	0.22
L1, mm.	5.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN125
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	5.43
D2, mm.	137.8
D3, in.	5.91
D3, mm.	150
L, in.	0.89
L, mm.	22.5
L1, in.	0.22
L1, mm.	5.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN150
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN150
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D2, in.	6.45
D2, mm.	163.8
D3, in.	6.93
D3, mm.	176
L, in.	0.96
L, mm.	24.5
L1, in.	0.26
L1, mm.	6.5
