E7EI - Male E-Line X Male E-line X Female E-Line Tee

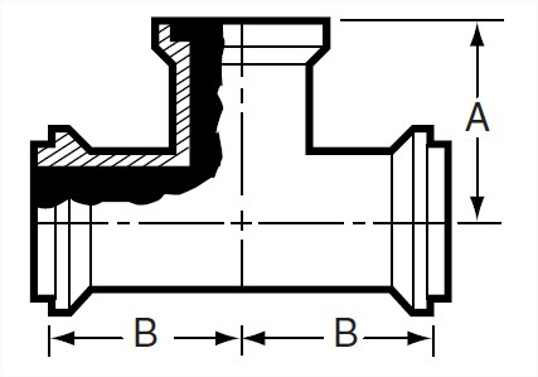

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.875	47.63	1.687	1
1.5	2.593	65.86	2.406	0.86
2	3.062	77.77	2.812	1.68
2.5	3.468	88.09	3.156	2.62
3	3.812	96.82	3.5	3.28
4	4.968	126.19	4.656	5.32
6	6.75	171.45	6.437	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	1.875
A, mm.	47.63
B, in.	1.687
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	2.593
A, mm.	65.86
B, in.	2.406
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.062
A, mm.	77.77
B, in.	2.812
Product Weight	1.68

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.468
A, mm.	88.09
B, in.	3.156
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.812
A, mm.	96.82
B, in.	3.5
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	4.968
A, mm.	126.19
B, in.	4.656
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	6.75
A, mm.	171.45
B, in.	6.437

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	1.875
A, mm.	47.63
B, in.	1.687
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	2.593
A, mm.	65.86
B, in.	2.406
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.062
A, mm.	77.77
B, in.	2.812
Product Weight	1.68

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.468
A, mm.	88.09
B, in.	3.156
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	3.812
A, mm.	96.82
B, in.	3.5
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	4.968
A, mm.	126.19
B, in.	4.656
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7E
Wayland Part Number	W7EI
Dixon Part Number	B7EI
Sanitary Solutions Part Number	SS7EI
Sanitube Part Number	7EI
A, in.	6.75
A, mm.	171.45
B, in.	6.437
