VBASSB - B Series Weld End Actuated Butterfly Valves

Material Type
Size
Seat Material
Actuated Valve Fail Position Flow Pattern

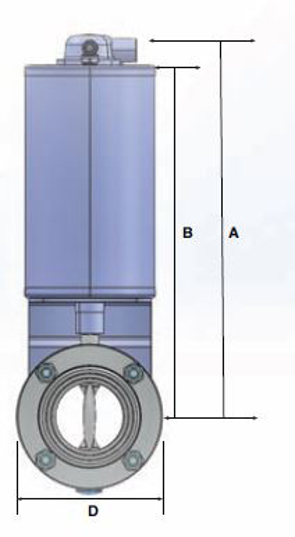

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.
1	9.833	249.76	8.987	13.653	346.79	2.953	75.01
1.5	10.012	254.3	9.166	13.832	351.33	3.188	80.98
2	10.377	263.58	9.531	14.197	360.6	3.656	92.86
2.5	10.526	267.36	9.68	14.346	364.39	4.094	103.99
3	10.748	273	9.902	14.568	370.03	4.531	115.09
4	11.371	288.82	10.525	15.191	385.85	5.672	144.07

EPDM, Fail Closed

	VNE part number
OD Tube Size	304	316
1	VBASSB-NC-1.0-E	VBASSB-6-NC-1.0-E
1.5	VBASSB-NC-1.5-E	VBASSB-6-NC-1.5-E
2	VBASSB-NC-2.0-E	VBASSB-6-NC-2.0-E
2.5	VBASSB-NC-2.5-E	VBASSB-6-NC-2.5-E
3	VBASSB-NC-3.0-E	VBASSB-6-NC-3.0-E
4	VBASSB-NC-4.0-E	VBASSB-6-NC-4.0-E

EPDM, Fail Open

	VNE part number
OD Tube Size	304	316
1	VBASSB-NO-1.0-E	VBASSB-6-NO-1.0-E
1.5	VBASSB-NO-1.5-E	VBASSB-6-NO-1.5-E
2	VBASSB-NO-2.0-E	VBASSB-6-NO-2.0-E
2.5	--	--
3	--	--
4	--	--

Silicone, Fail Closed

	VNE part number
OD Tube Size	304	316
1	VBASSB-NC-1.0	VBASSB-6-NC-1.0
1.5	VBASSB-NC-1.5	VBASSB-6-NC-1.5
2	VBASSB-NC-2.0	VBASSB-6-NC-2.0
2.5	VBASSB-NC-2.5	VBASSB-6-NC-2.5
3	VBASSB-NC-3.0	VBASSB-6-NC-3.0
4	VBASSB-NC-4.0	VBASSB-6-NC-4.0

Silicone, Fail Open

	VNE part number
OD Tube Size	304	316
1	VBASSB-NO-1.0	VBASSB-6-NO-1.0
1.5	VBASSB-NO-1.5	VBASSB-6-NO-1.5
2	VBASSB-NO-2.0	VBASSB-6-NO-2.0
2.5	--	--
3	--	--
4	--	--

Viton, Fail Closed

	VNE part number
OD Tube Size	304	316
1	VBASSB-NC-1.0-V	VBASSB-6-NC-1.0-V
1.5	VBASSB-NC-1.5-V	VBASSB-6-NC-1.5-V
2	VBASSB-NC-2.0-V	VBASSB-6-NC-2.0-V
2.5	VBASSB-NC-2.5-V	VBASSB-6-NC-2.5-V
3	VBASSB-NC-3.0-V	VBASSB-6-NC-3.0-V
4	VBASSB-NC-4.0-V	VBASSB-6-NC-4.0-V

Viton, Fail Open

	VNE part number
OD Tube Size	304	316
1	VBASSB-NO-1.0-V	VBASSB-6-NO-1.0-V
1.5	VBASSB-NO-1.5-V	VBASSB-6-NO-1.5-V
2	VBASSB-NO-2.0-V	VBASSB-6-NO-2.0-V
2.5	--	--
3	--	--
4	--	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	9.833
A, mm.	249.76
B, in.	8.987
C, in.	13.653
C, mm.	346.79
D, in.	2.953
D, mm.	75.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.012
A, mm.	254.3
B, in.	9.166
C, in.	13.832
C, mm.	351.33
D, in.	3.188
D, mm.	80.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Open
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Open
Catalog File	valves.pdf
A, in.	10.377
A, mm.	263.58
B, in.	9.531
C, in.	14.197
C, mm.	360.6
D, in.	3.656
D, mm.	92.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.526
A, mm.	267.36
B, in.	9.68
C, in.	14.346
C, mm.	364.39
D, in.	4.094
D, mm.	103.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	10.748
A, mm.	273
B, in.	9.902
C, in.	14.568
C, mm.	370.03
D, in.	4.531
D, mm.	115.09

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Silicone
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Viton
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	External Proximity Switch Available
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Catalog File	valves.pdf
A, in.	11.371
A, mm.	288.82
B, in.	10.525
C, in.	15.191
C, mm.	385.85
D, in.	5.672
D, mm.	144.07
