E7WWT - Weld X Weld X Thread BS Tee

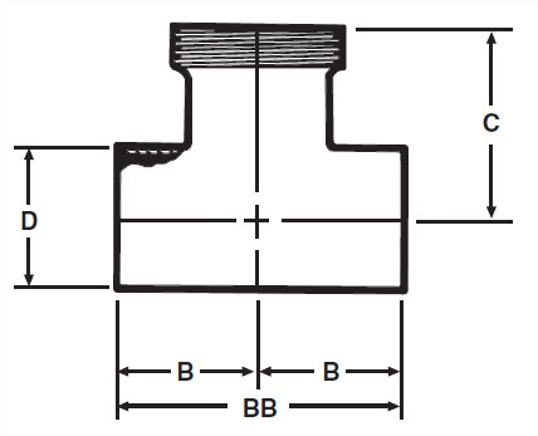

View Dimensions

Dimensions

OD Tube Size	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.	BB, in.	BB, mm.	Product Weight
1	1.125	1.812	46.02	1	25.4	0.065	2.25	57.15	0.29
1.5	1.656	2.375	60.33	1.5	38.1	0.065	3.312	84.12	0.54
2	2.062	2.781	70.64	2	50.8	0.065	4.125	104.78	0.88
2.5	2.343	3.187	80.95	2.5	63.5	0.065	4.687	119.05	1.24
3	2.593	3.5	88.9	3	76.2	0.065	5.187	131.75	1.7
4	3.625	4.656	118.26	4	101.6	0.083	7.25	184.15	3.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	1.125
C, in.	1.812
C, mm.	46.02
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.29

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	1.656
C, in.	2.375
C, mm.	60.33
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.062
C, in.	2.781
C, mm.	70.64
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.343
C, in.	3.187
C, mm.	80.95
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.593
C, in.	3.5
C, mm.	88.9
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	3.625
C, in.	4.656
C, mm.	118.26
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	7.25
BB, mm.	184.15
Product Weight	3.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	1.125
C, in.	1.812
C, mm.	46.02
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.29

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	1.656
C, in.	2.375
C, mm.	60.33
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.062
C, in.	2.781
C, mm.	70.64
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.343
C, in.	3.187
C, mm.	80.95
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	2.593
C, in.	3.5
C, mm.	88.9
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT
B, in.	3.625
C, in.	4.656
C, mm.	118.26
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	7.25
BB, mm.	184.15
Product Weight	3.54
