EG28A - Lateral 45 Degree Y

Material Type
Size

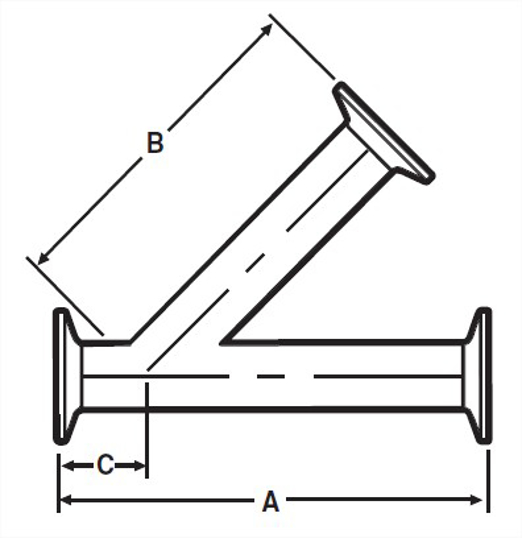

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	7	177.8	5.5	1.5	38.1	0.98
1.5	8.375	212.73	6.687	1.687	42.85	1.28
2	9.625	244.48	7.625	2.125	53.98	1.88
2.5	11.125	282.58	9	2	50.8	2.84
3	11.75	298.45	9.375	2.375	60.33	3.52
4	14.062	357.17	11.375	2.687	68.25	7.56
6	18.875	479.43	15.375	4.375	111.13	--

	VNE part number
OD Tube Size	304	316L
1	EG28A1.0	EG28A-6L1.0
1.5	EG28A1.5	EG28A-6L1.5
2	EG28A2.0	EG28A-6L2.0
2.5	EG28A2.5	EG28A-6L2.5
3	EG28A3.0	EG28A-6L3.0
4	EG28A4.0	EG28A-6L4.0
6	EG28A6.0	EG28A-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-1-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	7
A, mm.	177.8
B, in.	5.5
C, in.	1.5
C, mm.	38.1
Product Weight	0.98

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-1.5-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	8.375
A, mm.	212.73
B, in.	6.687
C, in.	1.687
C, mm.	42.85
Product Weight	1.28

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-2-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	9.625
A, mm.	244.48
B, in.	7.625
C, in.	2.125
C, mm.	53.98
Product Weight	1.88

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-2.5-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	11.125
A, mm.	282.58
B, in.	9
C, in.	2
C, mm.	50.8
Product Weight	2.84

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-3-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	11.75
A, mm.	298.45
B, in.	9.375
C, in.	2.375
C, mm.	60.33
Product Weight	3.52

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-4-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	14.062
A, mm.	357.17
B, in.	11.375
C, in.	2.687
C, mm.	68.25
Product Weight	7.56

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-6-304
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	18.875
A, mm.	479.43
B, in.	15.375
C, in.	4.375
C, mm.	111.13

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-1-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	7
A, mm.	177.8
B, in.	5.5
C, in.	1.5
C, mm.	38.1
Product Weight	0.98

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-1.5-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	8.375
A, mm.	212.73
B, in.	6.687
C, in.	1.687
C, mm.	42.85
Product Weight	1.28

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-2-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	9.625
A, mm.	244.48
B, in.	7.625
C, in.	2.125
C, mm.	53.98
Product Weight	1.88

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-2.5-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	11.125
A, mm.	282.58
B, in.	9
C, in.	2
C, mm.	50.8
Product Weight	2.84

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-3-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	11.75
A, mm.	298.45
B, in.	9.375
C, in.	2.375
C, mm.	60.33
Product Weight	3.52

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-4-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	14.062
A, mm.	357.17
B, in.	11.375
C, in.	2.687
C, mm.	68.25
Product Weight	7.56

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28A6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28AMP
Steel O’brien Part Number	28AMP-6-316
Wayland Part Number	W28AMP
Dixon Part Number	B28AMP
Sanitary Solutions Part Number	SS28AMP
Sanitube Part Number	28AMP
A, in.	18.875
A, mm.	479.43
B, in.	15.375
C, in.	4.375
C, mm.	111.13
