E21I-14I - Male E-Line X Male NPT Adapter

E21I-14I - Male E-Line X Male NPT Adapter

Material Type
Size

View Dimensions

Dimensions

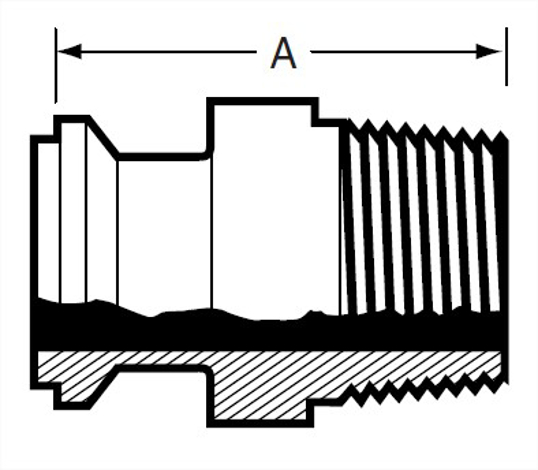

E21I-14I - Male E-Line X Male NPT Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.343	59.51	0.54
1.5	2.5	63.5	0.74
2	2.593	65.86	1.04
2.5	3.125	79.38	1.58
3	3.406	86.51	2.46
4	3.593	91.26	3.56
6	4.812	122.22	--

Close

	VNE part number
OD Tube Size	304	316L
1	E21I-14I1.0	E21I-14I-6L1.0
1.5	E21I-14I1.5	E21I-14I-6L1.5
2	E21I-14I2.0	E21I-14I-6L2.0
2.5	E21I-14I2.5	E21I-14I-6L2.5
3	E21I-14I3.0	E21I-14I-6L3.0
4	E21I-14I4.0	E21I-14I-6L4.0
6	E21I-14I6.0	E21I-14I-6L6.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.343
A, mm.	59.51
Product Weight	0.54

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
Product Weight	0.74

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.593
A, mm.	65.86
Product Weight	1.04

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.125
A, mm.	79.38
Product Weight	1.58

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.406
A, mm.	86.51
Product Weight	2.46

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E21I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.593
A, mm.	91.26
Product Weight	3.56

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.812
A, mm.	122.22

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.343
A, mm.	59.51
Product Weight	0.54

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
Product Weight	0.74

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.593
A, mm.	65.86
Product Weight	1.04

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.125
A, mm.	79.38
Product Weight	1.58

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.406
A, mm.	86.51
Product Weight	2.46

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E21I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.593
A, mm.	91.26
Product Weight	3.56

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male NPT
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.812
A, mm.	122.22
