16A - Plain BS Solid End Cap

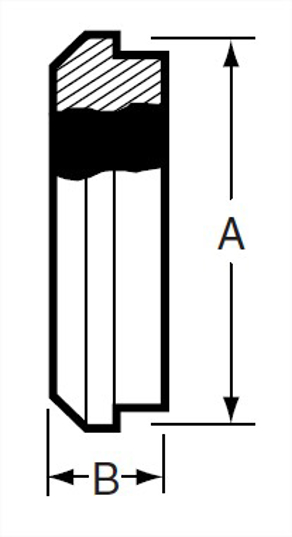

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.312	33.32	0.468	0.16
1.5	1.843	46.81	0.562	0.38
2	2.375	60.33	0.625	0.72
2.5	2.906	73.81	0.656	1.14
3	3.437	87.3	0.718	1.76
4	4.5	114.3	0.812	3.44

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	1.312
A, mm.	33.32
B, in.	0.468
Product Weight	0.16

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	1.843
A, mm.	46.81
B, in.	0.562
Product Weight	0.38

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	2.375
A, mm.	60.33
B, in.	0.625
Product Weight	0.72

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	2.906
A, mm.	73.81
B, in.	0.656
Product Weight	1.14

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	3.437
A, mm.	87.3
B, in.	0.718
Product Weight	1.76

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	16A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	4.5
A, mm.	114.3
B, in.	0.812
Product Weight	3.44

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	1.312
A, mm.	33.32
B, in.	0.468
Product Weight	0.16

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	1.843
A, mm.	46.81
B, in.	0.562
Product Weight	0.38

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	2.375
A, mm.	60.33
B, in.	0.625
Product Weight	0.72

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	2.906
A, mm.	73.81
B, in.	0.656
Product Weight	1.14

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	3.437
A, mm.	87.3
B, in.	0.718
Product Weight	1.76

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16A
Wayland Part Number	W16A
Dixon Part Number	16A
Sanitary Solutions Part Number	SS16A
Sanitube Part Number	16A
A, in.	4.5
A, mm.	114.3
B, in.	0.812
Product Weight	3.44
