E2WU - 180 Degree U-Bends

Material Type
Size

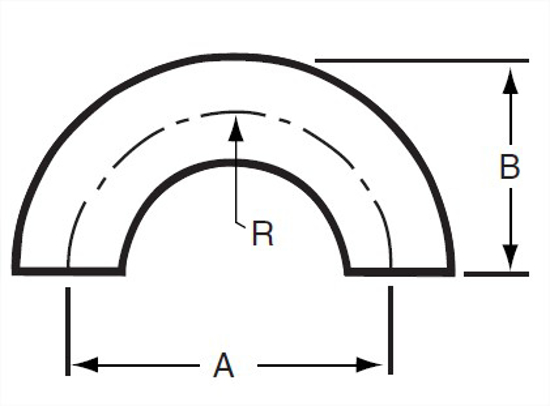

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	R, in.	T Nom Wall, in.	Product Weight
0.5	--	--	--	--	--	--	0.065	--
0.75	--	--	--	--	--	--	0.065	--
1	3	76.2	2	1	25.4	1.5	0.065	0.22
1.5	4.5	114.3	3	1.5	38.1	2.25	0.065	0.5
2	6	152.4	4	2	50.8	3	0.065	1
2.5	7.5	190.5	5	2.5	63.5	3.75	0.065	1.34
3	9	228.6	6	3	76.2	4.5	0.065	2.16
4	12	304.8	8	4	101.6	6	0.083	5.38
6	18	457.2	12	6	152.4	9	0.109	--

	VNE part number
OD Tube Size	304	316L
0.5	--	E2WU-6L.5
0.75	--	E2WU-6L.75
1	E2WU1.0	E2WU-6L1.0
1.5	E2WU1.5	E2WU-6L1.5
2	E2WU2.0	E2WU-6L2.0
2.5	E2WU2.5	E2WU-6L2.5
3	E2WU3.0	E2WU-6L3.0
4	E2WU4.0	E2WU-6L4.0
6	E2WU6.0	E2WU-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-1-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	3
A, mm.	76.2
B, in.	2
C, in.	1
C, mm.	25.4
R, in.	1.5
T Nom Wall, in.	0.065
Product Weight	0.22

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-1.5-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	4.5
A, mm.	114.3
B, in.	3
C, in.	1.5
C, mm.	38.1
R, in.	2.25
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-2-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	6
A, mm.	152.4
B, in.	4
C, in.	2
C, mm.	50.8
R, in.	3
T Nom Wall, in.	0.065
Product Weight	1

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-2.5-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	7.5
A, mm.	190.5
B, in.	5
C, in.	2.5
C, mm.	63.5
R, in.	3.75
T Nom Wall, in.	0.065
Product Weight	1.34

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-3-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	9
A, mm.	228.6
B, in.	6
C, in.	3
C, mm.	76.2
R, in.	4.5
T Nom Wall, in.	0.065
Product Weight	2.16

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-4-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	12
A, mm.	304.8
B, in.	8
C, in.	4
C, mm.	101.6
R, in.	6
T Nom Wall, in.	0.083
Product Weight	5.38

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-6-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	18
A, mm.	457.2
B, in.	12
C, in.	6
C, mm.	152.4
R, in.	9
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-.50-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
T Nom Wall, in.	0.065

Material Type	316L
Size	0.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-.75-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
T Nom Wall, in.	0.065

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-1-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	3
A, mm.	76.2
B, in.	2
C, in.	1
C, mm.	25.4
R, in.	1.5
T Nom Wall, in.	0.065
Product Weight	0.22

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-1.5-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	4.5
A, mm.	114.3
B, in.	3
C, in.	1.5
C, mm.	38.1
R, in.	2.25
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-2-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	6
A, mm.	152.4
B, in.	4
C, in.	2
C, mm.	50.8
R, in.	3
T Nom Wall, in.	0.065
Product Weight	1

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-2.5-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	7.5
A, mm.	190.5
B, in.	5
C, in.	2.5
C, mm.	63.5
R, in.	3.75
T Nom Wall, in.	0.065
Product Weight	1.34

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-3-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	9
A, mm.	228.6
B, in.	6
C, in.	3
C, mm.	76.2
R, in.	4.5
T Nom Wall, in.	0.065
Product Weight	2.16

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-4-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	12
A, mm.	304.8
B, in.	8
C, in.	4
C, mm.	101.6
R, in.	6
T Nom Wall, in.	0.083
Product Weight	5.38

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-6-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU
A, in.	18
A, mm.	457.2
B, in.	12
C, in.	6
C, mm.	152.4
R, in.	9
T Nom Wall, in.	0.109
