E31CW - Clamp X Weld Concentric Reducer

E31CW - Clamp X Weld Concentric Reducer

Material Type
Size

View Dimensions

Dimensions

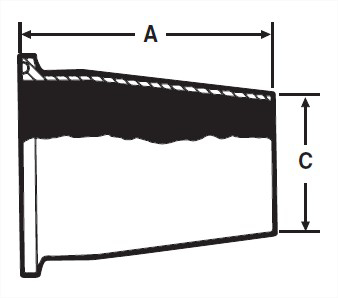

E31CW - Clamp X Weld Concentric Reducer

OD Tube Size	A, in.	A, mm.	C, in.	C, mm.	T Nom Wall, in.	Product Weight
1.5X1.0	2.5	63.5	1	25.4	0.065	0.26
2.0X1.5	2.5	63.5	1.5	38.1	0.065	0.34
2.5X1.5	4.5	114.3	1.5	38.1	0.065	0.64
2.5X2.0	2.5	63.5	2	50.8	0.065	0.44
3.0X2.0	4.5	114.3	2	50.8	0.065	--
3.0X2.5	2.5	63.5	2.5	63.5	0.065	--
4.0X2.0	8.625	219.08	2	50.8	0.065	1.88
4.0X2.5	6.625	168.28	2.5	63.5	0.065	1.6
4.0X3.0	4.25	107.95	3	76.2	0.065	1.32
6.0X4.0	6.375	161.93	4	101.6	0.083	--

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E31CW1.5X1.0	E31CW-6L1.5X1.0
2.0X1.5	E31CW2.0X1.5	E31CW-6L2.0X1.5
2.5X1.5	E31CW2.5X1.5	E31CW-6L2.5X1.5
2.5X2.0	E31CW2.5X2.0	E31CW-6L2.5X2.0
3.0X2.0	E31CW3.0X2.0	E31CW-6L3.0X2.0
3.0X2.5	E31CW3.0X2.5	E31CW-6L3.0X2.5
4.0X2.0	E31CW4.0X2.0	E31CW-6L4.0X2.0
4.0X2.5	E31CW4.0X2.5	E31CW-6L4.0X2.5
4.0X3.0	E31CW4.0X3.0	E31CW-6L4.0X3.0
6.0X4.0	E31CW6.0X4.0	E31CW-6L6.0X4.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.64

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.44

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.625
A, mm.	219.08
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.88

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.625
A, mm.	168.28
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.6

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.32

Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.375
A, mm.	161.93
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.083

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.64

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.44

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.82

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.625
A, mm.	219.08
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.88

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.625
A, mm.	168.28
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.6

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.32

Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.375
A, mm.	161.93
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.083
