EG31CC - Clamp Concentric Reducer

Material Type
Size

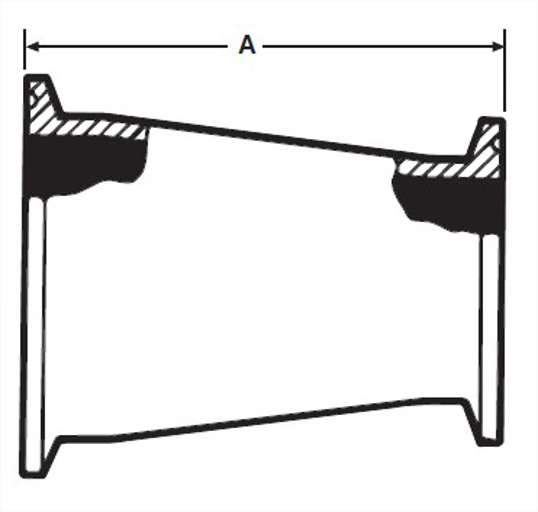

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
.75X.5	2	50.8	0.18
1.0X.5	2	50.8	0.22
1.0X.75	2	50.8	0.22
1.5X.5	3	76.2	0.26
1.5X.75	3	76.2	0.24
1.5X1.0	3	76.2	0.36
2.0X1.0	5	127	0.58
2.0X1.5	3	76.2	0.42
2.5X1.0	7	177.8	0.92
2.5X1.5	5	127	0.7
2.5X2.0	3	76.2	0.56
3.0X1.5	7	177.8	1.02
3.0X2.0	5	127	0.92
3.0X2.5	3	76.2	0.64
4.0X1.5	11.125	282.58	--
4.0X2.0	9.125	231.78	1.86
4.0X2.5	7.125	180.98	1.72
4.0X3.0	5.125	130.18	1.42
6.0X3.0	6.875	174.63	3.12
6.0X4.0	7	177.8	3.5

	VNE part number
OD Tube Size	304	316L
.75X.5	--	EG31CC6L.75X.5
1.0X.5	--	EG31CC6L1.0X.5
1.0X.75	--	EG31CC6L1.0X.75
1.5X.5	--	EG31CC6L1.5X.5
1.5X.75	--	EG31CC6L1.5X.75
1.5X1.0	EG31CC1.5X1.0	EG31CC6L1.5X1.0
2.0X1.0	EG31CC2.0X1.0	EG31CC6L2.0X1.0
2.0X1.5	EG31CC2.0X1.5	EG31CC6L2.0X1.5
2.5X1.0	EG31CC2.5X1.0	EG31CC6L2.5X1.0
2.5X1.5	EG31CC2.5X1.5	EG31CC6L2.5X1.5
2.5X2.0	EG31CC2.5X2.0	EG31CC6L2.5X2.0
3.0X1.5	EG31CC3.0X1.5	EG31CC6L3.0X1.5
3.0X2.0	EG31CC3.0X2.0	EG31CC6L3.0X2.0
3.0X2.5	EG31CC3.0X2.5	EG31CC6L3.0X2.5
4.0X1.5	EG31CC4.0X1.5	EG31CC6L4.0X1.5
4.0X2.0	EG31CC4.0X2.0	EG31CC6L4.0X2.0
4.0X2.5	EG31CC4.0X2.5	EG31CC6L4.0X2.5
4.0X3.0	EG31CC4.0X3.0	EG31CC6L4.0X3.0
6.0X3.0	EG31CC6.0X3.0	EG31CC-6L6.0X3.0
6.0X4.0	EG31CC6.0X4.0	EG31CC-6L6.0X4.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1.5X1-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.36

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2X1-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.58

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2X1.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.42

Material Type	304
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X1.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	0.92

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X1.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.7

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X2-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.56

Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X1.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	1.02

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X2-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.92

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X2.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X1.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	11.125
A, mm.	282.58

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X2-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	9.125
A, mm.	231.78
Product Weight	1.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X2.5-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7.125
A, mm.	180.98
Product Weight	1.72

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X3-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5.125
A, mm.	130.18
Product Weight	1.42

Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-6X3-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	6.875
A, mm.	174.63
Product Weight	3.12

Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-6X4-304
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	.75X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-.75X.50-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	2
A, mm.	50.8
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1X.50-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	2
A, mm.	50.8
Product Weight	0.22

Material Type	316L
Size	1.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC1.0X.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1X.75-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	2
A, mm.	50.8
Product Weight	0.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1.5X.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.26

Material Type	316L
Size	1.5X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC1.5X.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1.5X.75-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.24

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-1.5X1-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.36

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2X1-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.58

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2X1.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.42

Material Type	316L
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X1.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	0.92

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X1.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.7

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-2.5X2-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.56

Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X1.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	1.02

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X2-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5
A, mm.	127
Product Weight	0.92

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-3X2.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	3
A, mm.	76.2
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X1.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	11.125
A, mm.	282.58

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X2-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	9.125
A, mm.	231.78
Product Weight	1.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X2.5-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7.125
A, mm.	180.98
Product Weight	1.72

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X3-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	5.125
A, mm.	130.18
Product Weight	1.42

Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-6X3-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	6.875
A, mm.	174.63
Product Weight	3.12

Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-6X4-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP
A, in.	7
A, mm.	177.8
Product Weight	3.5
