EG2C31PR - Clamp X Plain BS Reducing 90 Degree Elbow

EG2C31PR - Clamp X Plain BS Reducing 90 Degree Elbow

Material Type
Size

View Dimensions

Dimensions

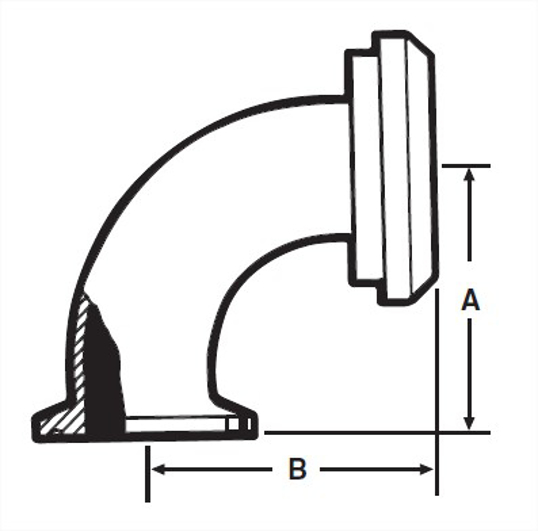

EG2C31PR - Clamp X Plain BS Reducing 90 Degree Elbow

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
2.0X1.0	2	50.8	2.25	0.96
2.0X1.5	2.75	69.85	3	1.08
2.5X1.5	2.75	69.85	3.037	1.47
2.5X2.0	3.5	88.9	3.781	--
3.0X1.5	2.75	69.85	3.593	--
3.0X2.0	3.5	88.9	3.843	2.35
3.0X2.5	4.25	107.95	4.593	--
4.0X2.5	4.25	107.95	4.687	--
4.0X3.0	5	127	5.437	--

Close

	VNE part number
OD Tube Size	304	316L
2.0X1.0	EG2C31PR2.0X1.0	EG2C31PR6L20X10
2.0X1.5	EG2C31PR2.0X1.5	EG2C31PR6L20X15
2.5X1.5	EG2C31PR2.5X1.5	EG2C31PR6L25X15
2.5X2.0	EG2C31PR2.5X2.0	EG2C31PR6L25X20
3.0X1.5	EG2C31PR3.0X1.5	EG2C31PR6L30X15
3.0X2.0	EG2C31PR3.0X2.0	EG2C31PR6L30X20
3.0X2.5	EG2C31PR3.0X2.5	EG2C31PR6L30X25
4.0X2.5	EG2C31PR4.0X2.5	EG2C31PR6L40X25
4.0X3.0	EG2C31PR4.0X3.0	EG2C31PR6L40X30

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	2.25
Product Weight	0.96

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3
Product Weight	1.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3.037
Product Weight	1.47

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.781

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3.593

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.843
Product Weight	2.35

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.593

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.687

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	5
A, mm.	127
B, in.	5.437

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	2.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3.037

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.781

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	3.593

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.843

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.593

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.687

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	5
A, mm.	127
B, in.	5.437
