TE2S - BPE AWF 90 Degree Elbow MaxPure 316L

Size
Surface Finish

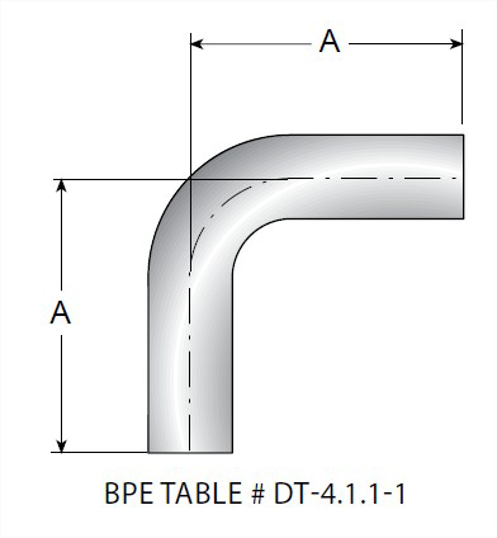

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
0.25	2.625	66.68	--
0.375	2.625	66.68	--
0.5	3	76.2	0.143
0.75	3	76.2	0.231
1	3	76.2	0.297
1.5	3.75	95.25	0.682
2	4.75	120.65	0.957
2.5	5.5	139.7	1.331
3	6.25	158.75	1.859
4	8	203.2	4.059
6	11.5	292.1	11.2

PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD

	VNE part number
OD Tube Size	316L
0.25	TE2S6L.25-PC
0.375	TE2S6L.375-PC
0.5	TE2S6L.5-PC
0.75	TE2S6L.75-PC
1	TE2S6L1.0-PC
1.5	TE2S6L1.5-PC
2	TE2S6L2.0-PC
2.5	TE2S6L2.5-PC
3	TE2S6L3.0-PC
4	TE2S6L4.0-PC
6	TE2S6L6.0-PC

PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD

	VNE part number
OD Tube Size	316L
0.25	TE2S6L.25-PD
0.375	TE2S6L.375-PD
0.5	TE2S6L.5-PD
0.75	TE2S6L.75-PD
1	TE2S6L1.0-PD
1.5	TE2S6L1.5-PD
2	TE2S6L2.0-PD
2.5	TE2S6L2.5-PD
3	TE2S6L3.0-PD
4	TE2S6L4.0-PD
6	TE2S6L6.0-PD

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	316L
0.25	TE2S6L.25-PL
0.375	TE2S6L.375-PL
0.5	TE2S6L.5-PL
0.75	TE2S6L.75-PL
1	TE2S6L1.0-PL
1.5	TE2S6L1.5-PL
2	TE2S6L2.0-PL
2.5	TE2S6L2.5-PL
3	TE2S6L3.0-PL
4	TE2S6L4.0-PL
6	TE2S6L6.0-PL

PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	316L
0.25	TE2S6L.25-PM
0.375	TE2S6L.375-PM
0.5	TE2S6L.5-PM
0.75	TE2S6L.75-PM
1	TE2S6L1.0-PM
1.5	TE2S6L1.5-PM
2	TE2S6L2.0-PM
2.5	TE2S6L2.5-PM
3	TE2S6L3.0-PM
4	TE2S6L4.0-PM
6	TE2S6L6.0-PM

Cad Model File	Click here to request 3D Step File
Size	0.25
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.375
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.375-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.5
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.143

Size	0.75
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.231

Size	1
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.297

Size	1.5
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.682

Size	2
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	4.75
A, mm.	120.65
Product Weight	0.957

Size	2.5
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	5.5
A, mm.	139.7
Product Weight	1.331

Size	3
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L3.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.859

Size	4
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L4.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	8
A, mm.	203.2
Product Weight	4.059

Size	6
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L6.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	11.5
A, mm.	292.1
Product Weight	11.2

Size	6
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L6.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	11.5
A, mm.	292.1
Product Weight	11.2

Size	4
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L4.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	8
A, mm.	203.2
Product Weight	4.059

Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L3.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.859

Size	2.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	5.5
A, mm.	139.7
Product Weight	1.331

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	4.75
A, mm.	120.65
Product Weight	0.957

Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.682

Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.297

Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.231

Size	0.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.143

Size	0.375
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.375-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Cad Model File	Click here to request 3D Step File
Size	0.25
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.375
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.375-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Cad Model File	Click here to request 3D Step File
Size	0.25
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.5
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.143

Size	0.75
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.231

Size	1
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.297

Size	1.5
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.682

Size	2
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	4.75
A, mm.	120.65
Product Weight	0.957

Size	2.5
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	5.5
A, mm.	139.7
Product Weight	1.331

Size	3
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L3.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.859

Size	4
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L4.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	8
A, mm.	203.2
Product Weight	4.059

Size	6
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L6.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	11.5
A, mm.	292.1
Product Weight	11.2

Size	6
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L6.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	11.5
A, mm.	292.1
Product Weight	11.2

Size	4
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L4.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	8
A, mm.	203.2
Product Weight	4.059

Size	3
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L3.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.859

Size	2.5
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	5.5
A, mm.	139.7
Product Weight	1.331

Size	2
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L2.0.STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	4.75
A, mm.	120.65
Product Weight	0.957

Size	1.5
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.682

Size	1
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L1.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.297

Size	0.75
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.231

Cad Model File	Click here to request 3D Step File
Size	0.25
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.375
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.375-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	2.625
A, mm.	66.68

Size	0.5
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.1-1
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2S6L.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
A, in.	3
A, mm.	76.2
Product Weight	0.143
