E16W - Weld Dome Cap

E16W - Weld Dome Cap

Material Type
Size

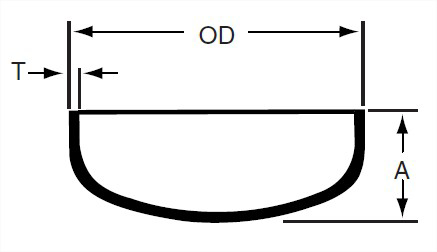

View Dimensions

Dimensions

E16W - Weld Dome Cap

OD Tube Size	A, in.	A, mm.	T Nom Wall, in.
1	0.375	9.53	0.065
1.25	0.5	12.7	0.065
1.5	0.562	14.27	0.065
2	0.75	19.05	0.065
2.5	1	25.4	0.065
3	1.25	31.75	0.065
4	1.5	38.1	0.083
6	--	--	--

Close

	VNE part number
OD Tube Size	304	316L
1	E16W1.0	E16W-6L1.0
1.25	E16W1.25	E16W-6L1.25
1.5	E16W1.5	E16W-6L1.5
2	E16W2.0	E16W-6L2.0
2.5	E16W2.5	E16W-6L2.5
3	E16W3.0	E16W-6L3.0
4	E16W4.0	E16W-6L4.0
6	E16W6.0	E16W-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 1.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.375
A, mm.	9.53
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
T Nom Wall, in.	0.065

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 1.5 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.562
A, mm.	14.27
T Nom Wall, in.	0.065

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 2.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
T Nom Wall, in.	0.065

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 2.5 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
T Nom Wall, in.	0.065

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 3.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.25
A, mm.	31.75
T Nom Wall, in.	0.065

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 4.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
T Nom Wall, in.	0.083

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16W 6.0 REV4.STEP
Catalog File	Fittings Catalog.pdf

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 1.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.375
A, mm.	9.53
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
T Nom Wall, in.	0.065

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 1.5 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.562
A, mm.	14.27
T Nom Wall, in.	0.065

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 2.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 2.5 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
T Nom Wall, in.	0.065

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 3.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.25
A, mm.	31.75
T Nom Wall, in.	0.065

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 4.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
T Nom Wall, in.	0.083

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16W 6.0 REV4.STEP
Catalog File	Fittings Catalog.pdf
