E2KS - Weld 45 Degree Elbow with Tangents

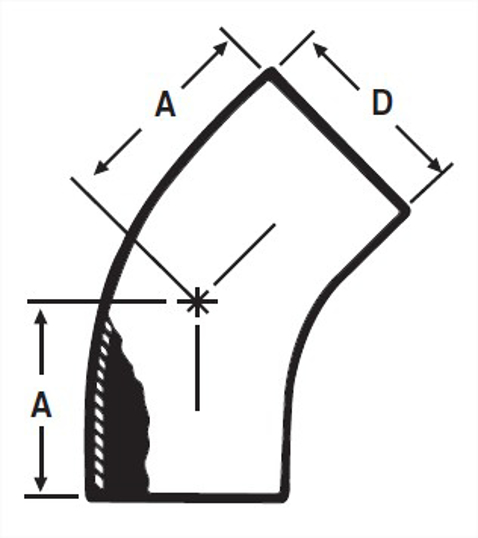

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	1.187	30.15	1	25.4	0.065	0.16
1.5	1.625	41.28	1.5	38.1	0.065	0.26
2	2.312	58.72	2	50.8	0.065	0.54
2.5	3	76.2	2.5	63.5	0.065	0.8
3	3.687	93.65	3	76.2	0.065	1.2
4	4.812	122.22	4	101.6	0.083	2.36

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.187
A, mm.	30.15
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.16

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1.5-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.625
A, mm.	41.28
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	2.312
A, mm.	58.72
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2.5-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3
A, mm.	76.2
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-3-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3.687
A, mm.	93.65
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-4-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	4.812
A, mm.	122.22
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.36

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.187
A, mm.	30.15
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.16

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1.5-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.625
A, mm.	41.28
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	2.312
A, mm.	58.72
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2.5-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3
A, mm.	76.2
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-3-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3.687
A, mm.	93.65
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.36

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-4-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	4.812
A, mm.	122.22
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.36
