21 - Thread BS X Male NPT Adapter

21 - Thread BS X Male NPT Adapter

Material Type
Size

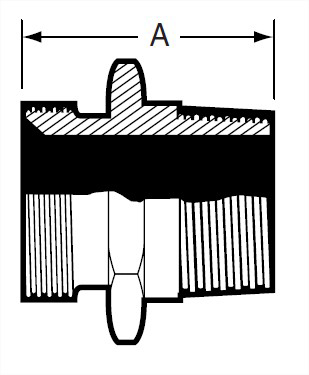

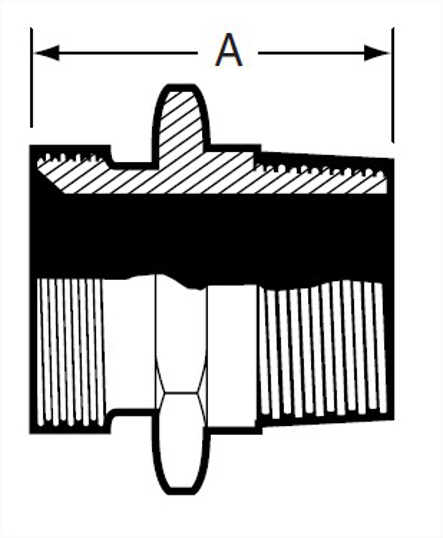

View Dimensions

Dimensions

21 - Thread BS X Male NPT Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.437	61.9	--
1.5	2.437	61.9	--
2	2.531	64.29	--
2.5	3.156	80.16	--
3	3.406	86.51	--
4	3.593	91.26	--

Close

	VNE part number
OD Tube Size	304	316L
1	211.0	21-6L1.0
1.5	211.5	21-6L1.5
2	212.0	21-6L2.0
2.5	212.5	21-6L2.5
3	213.0	21-6L3.0
4	214.0	21-6L4.0

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	211.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	211.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	212.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.531
A, mm.	64.29

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	212.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.156
A, mm.	80.16

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	213.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.406
A, mm.	86.51

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	214.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.593
A, mm.	91.26

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	211.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	0.3

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	211.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	0.74

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	212.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.531
A, mm.	64.29
Product Weight	1

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	212.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.156
A, mm.	80.16
Product Weight	1.54

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	213.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.406
A, mm.	86.51
Product Weight	2.44

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	214.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.593
A, mm.	91.26
Product Weight	3.76
