EG22 - Clamp X Female NPT Adapter

Material Type
Size

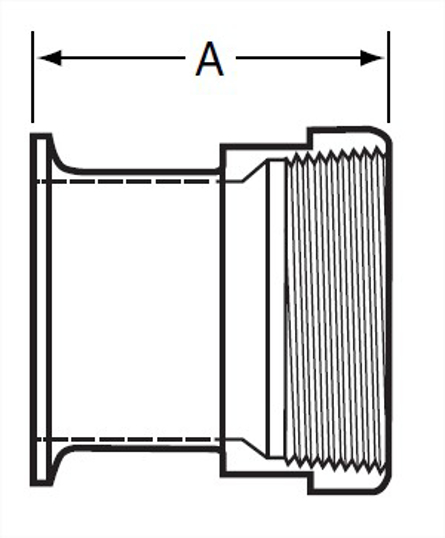

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
.75X.5	--	--	0.12
1	2.25	57.15	0.44
1.0X.5	1.625	41.28	0.36
1.0X.75	1.625	41.28	0.38
1.25	2.562	65.07	--
1.5	2.562	65.07	0.7
1.5X.5	1.625	41.28	--
1.5X.75	1.625	41.28	--
1.5X1.25	2.56	65.02	--
2	2.562	65.07	0.84
2.0X1.0	1.625	41.28	--
2.0X1.25	1.927	48.95	--
2.0X1.5	1.937	49.2	--
2.5	2.75	69.85	1.08
2.5X1.5	1.937	49.2	--
2.5X2.0	1.937	49.2	--
3	2.937	74.6	2.32
3.0X1.5	1.937	49.2	--
3.0X2.0	1.937	49.2	--
3.0X2.5	2.125	53.98	--
4	3.125	79.38	3.54
4.0X2.0	2.062	52.37	--
4.0X2.5	2.25	57.15	--
4.0X3.0	2.437	61.9	--

	VNE part number
OD Tube Size	304	316L
.75X.5	--	EG22-6L.75X.5
1	EG221.0	EG22-6L1.0
1.0X.5	--	EG22-6L1.0X.5
1.0X.75	--	EG22-6L1.0X.75
1.25	--	EG22-6L1.25
1.5	EG221.5	EG22-6L1.5
1.5X.5	--	EG22-6L1.5X.5
1.5X.75	--	EG22-6L1.5X.75
1.5X1.25	--	EG22-6L1.5X1.25
2	EG222.0	EG22-6L2.0
2.0X1.0	--	EG22-6L2.0X1.0
2.0X1.25	--	EG22-6L2.0X1.25
2.0X1.5	--	EG22-6L2.0X1.5
2.5	EG222.5	EG22-6L2.5
2.5X1.5	--	EG22-6L2.5X1.5
2.5X2.0	--	EG22-6L2.5X2.0
3	EG223.0	EG22-6L3.0
3.0X1.5	--	EG22-6L3.0X1.5
3.0X2.0	--	EG22-6L3.0X2.0
3.0X2.5	--	EG22-6L3.0X2.5
4	EG224.0	EG22-6L4.0
4.0X2.0	--	EG22-6L4.0X2.0
4.0X2.5	--	EG22-6L4.0X2.5
4.0X3.0	--	EG22-6L4.0X3.0

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.44

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.562
A, mm.	65.07
Product Weight	0.7

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG222.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.562
A, mm.	65.07
Product Weight	0.84

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG222.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2.5-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.75
A, mm.	69.85
Product Weight	1.08

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG223.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-3-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.937
A, mm.	74.6
Product Weight	2.32

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG224.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-4-304
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	3.125
A, mm.	79.38
Product Weight	3.54

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.44

Material Type	316L
Size	1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.25-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.562
A, mm.	65.07

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.562
A, mm.	65.07
Product Weight	0.7

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG222.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.562
A, mm.	65.07
Product Weight	0.84

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG222.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.75
A, mm.	69.85
Product Weight	1.08

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG223.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-3-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.937
A, mm.	74.6
Product Weight	2.32

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG224.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-4-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	3.125
A, mm.	79.38
Product Weight	3.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	.75X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-.75X.50-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
Product Weight	0.12

Material Type	316L
Size	1.0X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.0X.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1X.50-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.625
A, mm.	41.28
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5X1.25-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.56
A, mm.	65.02

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2X1-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.625
A, mm.	41.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.0X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2X1.25-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.927
A, mm.	48.95

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2X1.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.937
A, mm.	49.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2.5X1.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.937
A, mm.	49.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-2.5X2-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.937
A, mm.	49.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-3X1.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.937
A, mm.	49.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-3X2-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.937
A, mm.	49.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-3X2.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.125
A, mm.	53.98

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-4X2-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.062
A, mm.	52.37

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-4X2.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.25
A, mm.	57.15

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-4X3-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	2.437
A, mm.	61.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5X.50-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.625
A, mm.	41.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5X.75-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.625
A, mm.	41.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1X.75-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP
A, in.	1.625
A, mm.	41.28
Product Weight	0.38
