E2S - Weld 90 Degree Elbow with Tangents

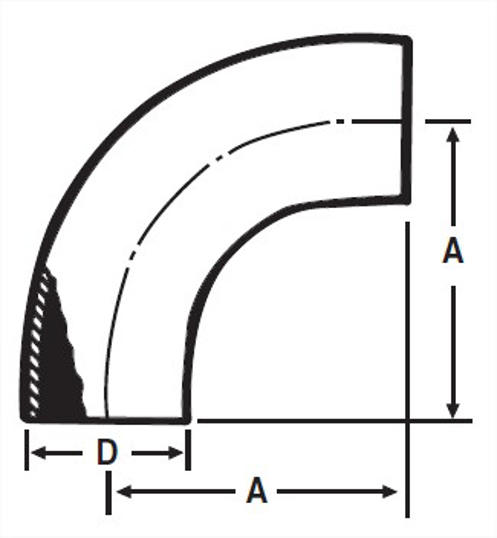

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	2.062	52.37	1	25.4	0.065	0.2
1.5	2.937	74.6	1.5	38.1	0.065	0.4
2	4.062	103.17	2	50.8	0.065	0.78
2.5	5.187	131.75	2.5	63.5	0.065	1.2
3	6.312	160.32	3	76.2	0.065	1.76
4	8.312	211.12	4	101.6	0.083	4.08

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-1-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	2.062
A, mm.	52.37
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.2

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-1.5-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	2.937
A, mm.	74.6
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.4

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-2-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	4.062
A, mm.	103.17
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.78

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-2.5-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	5.187
A, mm.	131.75
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-3-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	6.312
A, mm.	160.32
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.76

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2S4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-4-7-304
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	8.312
A, mm.	211.12
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	4.08

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-1-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	2.062
A, mm.	52.37
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.2

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-1.5-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	2.937
A, mm.	74.6
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.4

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-2-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	4.062
A, mm.	103.17
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.78

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-2.5-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	5.187
A, mm.	131.75
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-3-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	6.312
A, mm.	160.32
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.76

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-4-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S
A, in.	8.312
A, mm.	211.12
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	4.08
