13MHHM - Heavy Duty Clamp

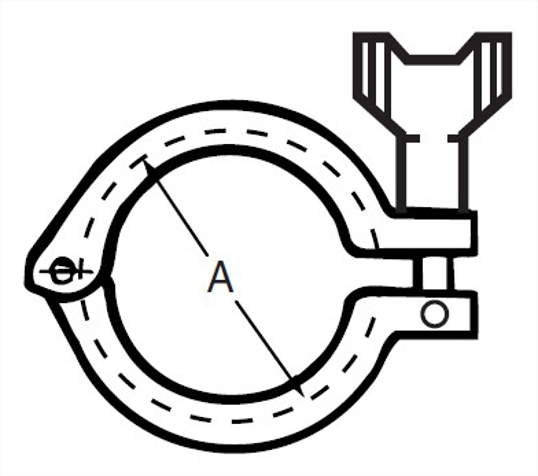

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
0.75	1.125	28.58	0.485
1.5	2.122	53.9	0.705
2	2.654	67.41	0.75
2.5	3.185	80.9	0.794
3	3.717	94.41	0.882
4	4.82	122.43	0.55
5	5.817	147.75	2.425
6	6.695	170.05	2.78
8	8.695	220.85	3.06
10	10.695	271.65	--
12	12.695	322.45	--

Size	12
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	12
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-12-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	12.695
A, mm.	322.45
Cad Model File	13MHHM12.0.STEP

Size	0.75
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-.50-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	1.125
A, mm.	28.58
Product Weight	0.485
Cad Model File	13MHHM.75.STEP

Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-1-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	2.122
A, mm.	53.9
Product Weight	0.705
Cad Model File	13MHHM1.5.STEP

Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-2-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	2.654
A, mm.	67.41
Product Weight	0.75
Cad Model File	13MHHM2.0.STEP

Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-2.5-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	3.185
A, mm.	80.9
Product Weight	0.794

Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-3-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	3.717
A, mm.	94.41
Product Weight	0.882
Cad Model File	13MHHM3.0.STEP

Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-4-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	4.82
A, mm.	122.43
Product Weight	0.55
Cad Model File	13MHHM4.0.STEP

Cad Model File	Click here to request 3D Step File
Size	5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	5
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-5-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	5.817
A, mm.	147.75
Product Weight	2.425

Size	6
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-6-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	6.695
A, mm.	170.05
Product Weight	2.78
Cad Model File	13MHHM6.0.STEP

Size	8
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-8-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	8.695
A, mm.	220.85
Product Weight	3.06
Cad Model File	13MHHM8.0.STEP

Size	10
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	10
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHHM
Steel O’brien Part Number	13MHHM-10-RWN-304
Wayland Part Number	W13MHM
Dixon Part Number	13MHHM
Sanitary Solutions Part Number	SS13MHM
Sanitube Part Number	13MHHM
A, in.	10.695
A, mm.	271.65
Cad Model File	13MHHM10.0.STEP
