E13IS - E-Line Clamp With Hole in Wingnut

E13IS - E-Line Clamp With Hole in Wingnut

Size

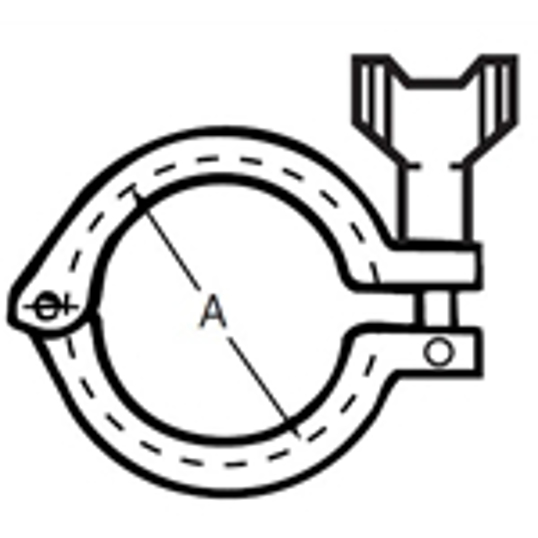

View Dimensions

Dimensions

E13IS - E-Line Clamp With Hole in Wingnut

OD Tube Size	A, in.	A, mm.
1.5	2.122	53.9
2	2.8	71.12
2.5	3.5	88.9
3	4.06	103.12
4	5	127

Close

	VNE part number
OD Tube Size	304
1.5	E13IS1.5-H
2	E13IS2.0-H
2.5	E13IS2.5-H
3	E13IS3.0-H
4	E13IS4.0-H

Cad Model File	Click here to request 3D Step File
Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	E-Line Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
A, in.	2.122
A, mm.	53.9

Cad Model File	Click here to request 3D Step File
Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	E-Line Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
A, in.	2.8
A, mm.	71.12

Cad Model File	Click here to request 3D Step File
Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	E-Line Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9

Cad Model File	Click here to request 3D Step File
Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	E-Line Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
A, in.	4.06
A, mm.	103.12

Cad Model File	Click here to request 3D Step File
Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	E-Line Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
A, in.	5
A, mm.	127

Click here to request 3D Step File
