E14HTI - Male E-Line Tygon Hose Adapter

E14HTI - Male E-Line Tygon Hose Adapter

Material Type
Size

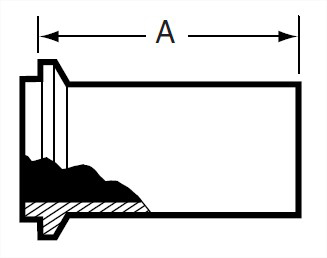

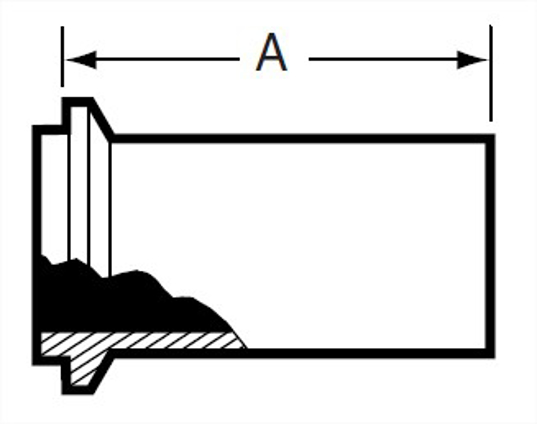

View Dimensions

Dimensions

E14HTI - Male E-Line Tygon Hose Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	4.062	103.17	0.42
1.5	4.281	108.74	0.46
2	4.5	114.3	0.72
2.5	4.812	122.22	0.98
3	5.062	128.57	1.42
4	5.187	131.75	2.28

Close

	VNE part number
OD Tube Size	304	316L
1	E14HTI1.0	E14HTI-6L1.0
1.5	E14HTI1.5	E14HTI-6L1.5
2	E14HTI2.0	E14HTI-6L2.0
2.5	E14HTI2.5	E14HTI-6L2.5
3	E14HTI3.0	E14HTI-6L3.0
4	E14HTI4.0	E14HTI-6L4.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	0.42

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.281
A, mm.	108.74
Product Weight	0.46

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
Product Weight	0.72

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.812
A, mm.	122.22
Product Weight	0.98

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.062
A, mm.	128.57
Product Weight	1.42

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HTI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.187
A, mm.	131.75
Product Weight	2.28

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	0.42

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.281
A, mm.	108.74
Product Weight	0.46

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
Product Weight	0.72

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.812
A, mm.	122.22
Product Weight	0.98

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.062
A, mm.	128.57
Product Weight	1.42

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HTI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.187
A, mm.	131.75
Product Weight	2.28
