TEG7RS - BPE Clamp Short Outlet Reducing Tee Alloy 22 UNS N06022

Size
Surface Finish

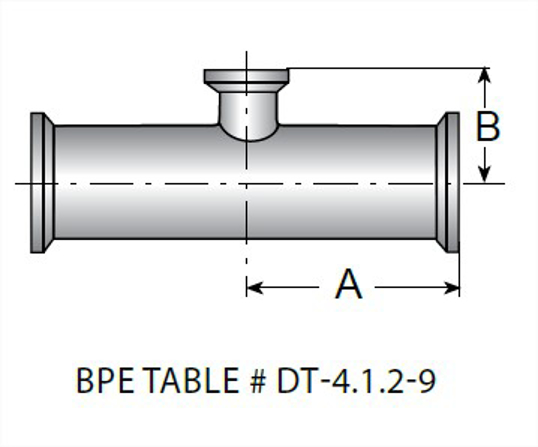

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
.75X.5	2.5	63.5	1	0.242
1.0X.5	2.625	66.68	1.125	0.671
1.0X.75	2.625	66.68	1.125	0.594
1.5X.5	2.875	73.03	1.375	0.781
1.5X.75	2.875	73.03	1.375	0.641
1.5X1.0	2.875	73.03	1.375	0.781
2.0X.5	3.375	85.73	1.625	1.023
2.0X.75	3.375	85.73	1.625	0.949
2.0X1.0	3.375	85.73	1.625	1.111
2.0X1.5	3.375	85.73	1.625	1.034
3.0X.5	3.875	98.43	2.125	3.39
3.0X.75	3.875	98.43	2.125	1.672
3.0X1.0	3.875	98.43	2.125	1.3
3.0X1.5	3.875	98.43	2.125	1.045
3.0X2.0	3.875	98.43	2.125	1.797
3.0X2.5	3.875	98.43	2.125	1.805

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
.75X.5	TEG7RSA22.75X.5-PL
1.0X.5	TEG7RSA221.0X.5-PL
1.0X.75	TEG7RSA221.0X.75-PL
1.5X.5	TEG7RSA221.5X.5-PL
1.5X.75	TEG7RSA221.5X.75-PL
1.5X1.0	TEG7RSA221.5X1.0-PL
2.0X.5	TEG7RSA222.0X.5-PL
2.0X.75	TEG7RSA222.0X.75-PL
2.0X1.0	TEG7RSA222.0X1.0-PL
2.0X1.5	TEG7RSA222.0X1.5-PL
3.0X.5	TEG7RSA223.0X.5-PL
3.0X.75	TEG7RSA223.0X.75-PL
3.0X1.0	TEG7RSA223.0X1.0-PL
3.0X1.5	TEG7RSA223.0X1.5-PL
3.0X2.0	TEG7RSA223.0X2.0-PL
3.0X2.5	TEG7RSA223.0X2.5-PL

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
.75X.5	TEG7RSA22.75X.5-PO
1.0X.5	TEG7RSA221.0X.5-PO
1.0X.75	TEG7RSA221.0X.75-PO
1.5X.5	TEG7RSA221.5X.5-PO
1.5X.75	TEG7RSA221.5X.75-PO
1.5X1.0	TEG7RSA221.5X1.0-PO
2.0X.5	TEG7RSA222.0X.5-PO
2.0X.75	TEG7RSA222.0X.75-PO
2.0X1.0	TEG7RSA222.0X1.0-PO
2.0X1.5	TEG7RSA222.0X1.5-PO
3.0X.5	TEG7RSA223.0X.5-PO
3.0X.75	TEG7RSA223.0X.75-PO
3.0X1.0	TEG7RSA223.0X1.0-PO
3.0X1.5	TEG7RSA223.0X1.5-PO
3.0X2.0	TEG7RSA223.0X2.0-PO
3.0X2.5	TEG7RSA223.0X2.5-PO

Size	.75X.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-9
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7RS6L.75X.5-...STEP
Catalog File	MaxCore.pdf
A, in.	2.5
A, mm.	63.5
B, in.	1
Product Weight	0.242
