14AHR - Plain BS Rubber Hose Adapter

14AHR - Plain BS Rubber Hose Adapter

Material Type
Size

View Dimensions

Dimensions

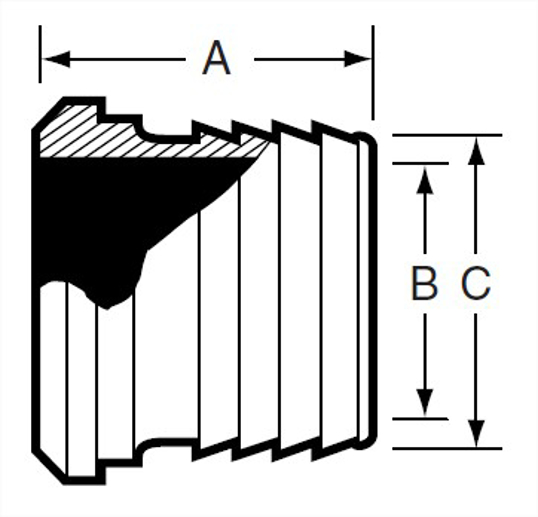

14AHR - Plain BS Rubber Hose Adapter

OD Tube Size	B, in.	C, in.	C, mm.	Product Weight
1	0.87	1	25.4	0.14
1.5	1.37	1.5	38.1	0.22
2	1.87	2	50.8	0.38
2.5	2.37	2	50.8	0.5
3	2.87	3	76.2	1
4	3.834	4	101.6	1.7

Close

	VNE part number
OD Tube Size	304	316L
1	14AHR1.0	14AHR-6L1.0
1.5	14AHR1.5	14AHR-6L1.5
2	14AHR2.0	14AHR-6L2.0
2.5	14AHR2.5	14AHR-6L2.5
3	14AHR3.0	14AHR-6L3.0
4	14AHR4.0	14AHR-6L4.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR1.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.14

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR1.5.STEP
Catalog File	Fittings Catalog.pdf
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.22

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR2.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.38

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR2.5.STEP
Catalog File	Fittings Catalog.pdf
B, in.	2.37
C, in.	2
C, mm.	50.8
Product Weight	0.5

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR3.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	1

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHR4.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.7

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR1.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.14

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR1.5.STEP
Catalog File	Fittings Catalog.pdf
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.22

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR2.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.38

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR2.5.STEP
Catalog File	Fittings Catalog.pdf
B, in.	2.37
C, in.	2
C, mm.	50.8
Product Weight	0.5

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR3.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	1

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHR4.0.STEP
Catalog File	Fittings Catalog.pdf
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.7
