E7WTW - Weld X Thread BS X Weld Tee

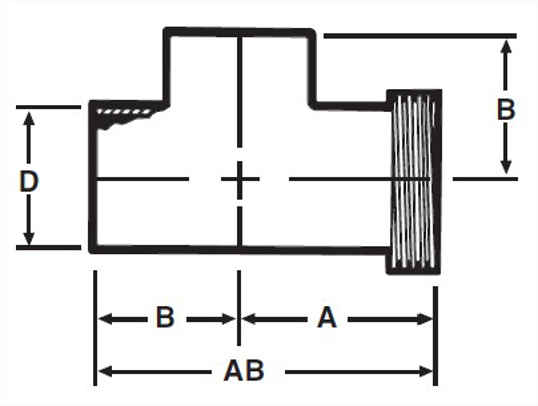

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	AB, in.	AB, mm.	Product Weight
1	1.812	46.02	1.125	1	25.4	0.065	2.937	74.6	0.29
1.5	2.375	60.33	1.656	1.5	38.1	0.065	4.031	102.39	0.54
2	2.781	70.64	2.062	2	50.8	0.065	4.843	123.01	0.88
2.5	3.187	80.95	2.343	2.5	63.5	0.065	5.531	140.49	1.24
3	3.5	88.9	2.593	3	76.2	0.065	6.093	154.76	1.7
4	4.656	118.26	3.625	4	101.6	0.083	8.281	210.34	3.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	1.812
A, mm.	46.02
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.937
AB, mm.	74.6
Product Weight	0.29

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	2.375
A, mm.	60.33
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AB, in.	4.031
AB, mm.	102.39
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	2.781
A, mm.	70.64
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AB, in.	4.843
AB, mm.	123.01
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	3.187
A, mm.	80.95
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AB, in.	5.531
AB, mm.	140.49
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	3.5
A, mm.	88.9
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AB, in.	6.093
AB, mm.	154.76
Product Weight	1.7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	4.656
A, mm.	118.26
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AB, in.	8.281
AB, mm.	210.34
Product Weight	3.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	1.812
A, mm.	46.02
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.937
AB, mm.	74.6
Product Weight	0.29

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	2.375
A, mm.	60.33
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AB, in.	4.031
AB, mm.	102.39
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	2.781
A, mm.	70.64
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AB, in.	4.843
AB, mm.	123.01
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	3.187
A, mm.	80.95
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AB, in.	5.531
AB, mm.	140.49
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	3.5
A, mm.	88.9
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AB, in.	6.093
AB, mm.	154.76
Product Weight	1.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTW
Wayland Part Number	W7WTW
Dixon Part Number	B7WTW
Sanitary Solutions Part Number	SS7WTW
Sanitube Part Number	7WTW
A, in.	4.656
A, mm.	118.26
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AB, in.	8.281
AB, mm.	210.34
Product Weight	3.54
