EG14HT - Tygon Hose Adapter

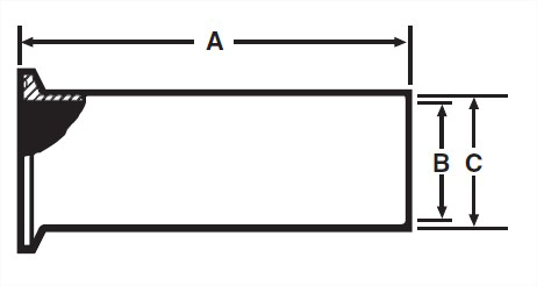

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	4.5	114.3	0.87	1	25.4	0.38
1.5	4.5	114.3	1.37	1.5	38.1	0.42
2	4.5	114.3	1.87	2	50.8	0.58
2.5	4.5	114.3	2.37	2.5	63.5	0.74
3	4.5	114.3	2.87	3	76.2	0.92
4	4.625	117.48	3.834	4	101.6	1.4

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-1-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.38

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-1.5-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.42

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-2-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.58

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-2.5-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.74

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-3-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.92

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-4-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.625
A, mm.	117.48
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.4

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-1-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.38

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-1.5-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.42

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-3-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.92

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-4-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.625
A, mm.	117.48
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.4

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-2-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.58

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-2.5-316
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT
A, in.	4.5
A, mm.	114.3
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.74
