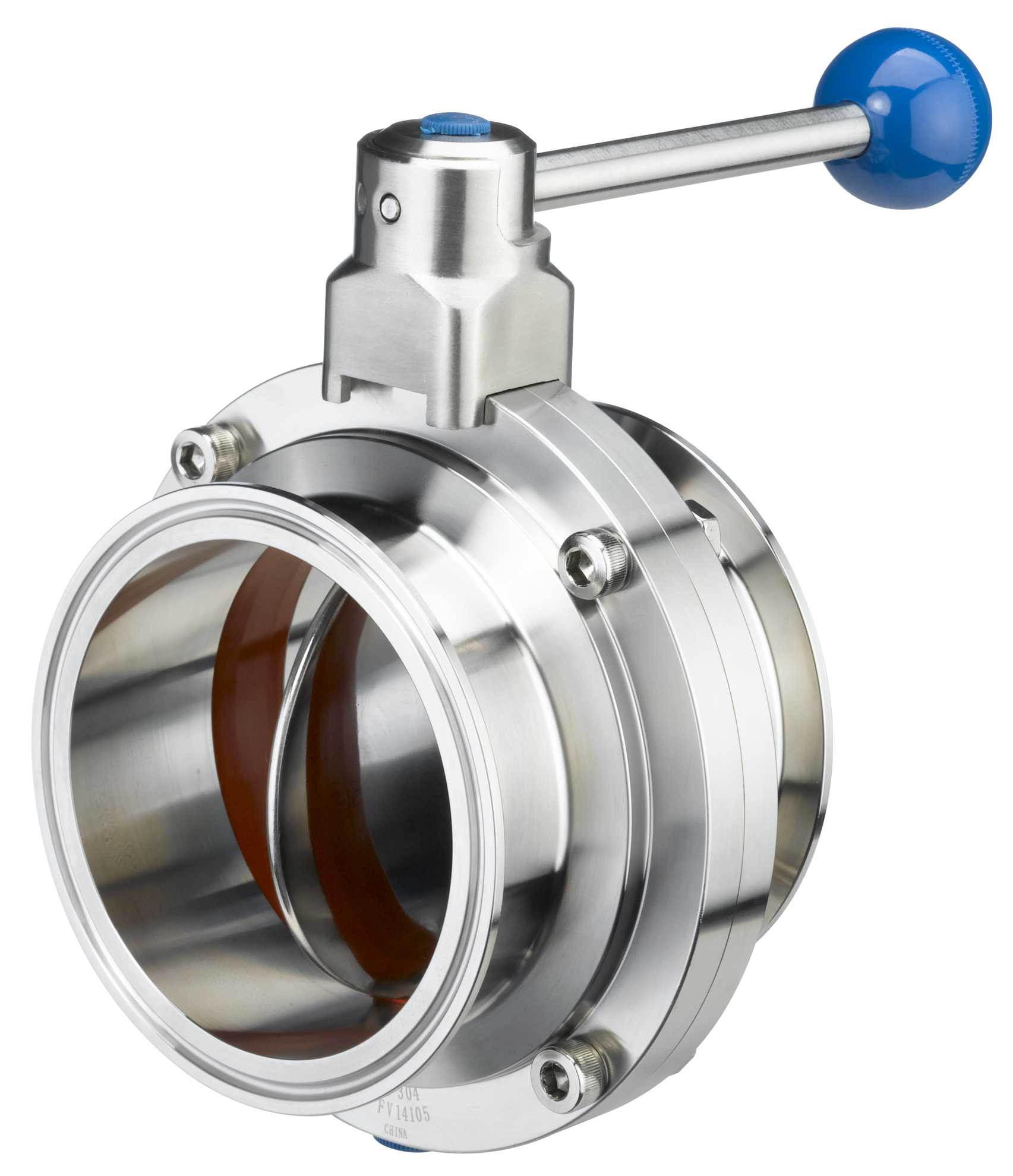

51W PH - Weld End Manual Butterfly Valve Pull Handle

Material Type
Size
Seat Material

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.
1	3.071	78	1	1.969	50.01
1.5	3.386	86	1.5	1.969	50.01
2	3.937	100	2	2.047	51.99
2.5	4.528	115.01	2.5	2.205	56.01
3	5.04	128.02	3	2.283	57.99
4	6.063	154	4	2.52	64.01

EPDM

	VNE part number
OD Tube Size	304	316
1	51W1.0ME/PH	51W-61.0ME/PH
1.5	51W1.5ME/PH	51W-61.5ME/PH
2	51W2.0ME/PH	51W-62.0ME/PH
2.5	51W2.5ME/PH	51W-62.5ME/PH
3	51W3.0ME/PH	51W-63.0ME/PH
4	51W4.0ME/PH	51W-64.0ME/PH

Silicone

	VNE part number
OD Tube Size	304	316
1	51W1.0MS/PH	51W-61.0MS/PH
1.5	51W1.5MS/PH	51W-61.5MS/PH
2	51W2.0MS/PH	51W-62.0MS/PH
2.5	51W2.5MS/PH	51W-62.5MS/PH
3	51W3.0MS/PH	51W-63.0MS/PH
4	51W4.0MS/PH	51W-64.0MS/PH

Viton

	VNE part number
OD Tube Size	304	316
1	51W1.0MV/PH	51W-61.0MV/PH
1.5	51W1.5MV/PH	51W-61.5MV/PH
2	51W2.0MV/PH	51W-62.0MV/PH
2.5	51W2.5MV/PH	51W-62.5MV/PH
3	51W3.0MV/PH	51W-63.0MV/PH
4	51W4.0MV/PH	51W-64.0MV/PH

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2
D, in.	2.047
D, mm.	51.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	2.5
D, in.	2.205
D, mm.	56.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3
D, in.	2.283
D, mm.	57.99

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4
D, in.	2.52
D, mm.	64.01
