E90WW - Weld End 2-Way Ball Valves

E90WW - Weld End 2-Way Ball Valves

Material Type
Size

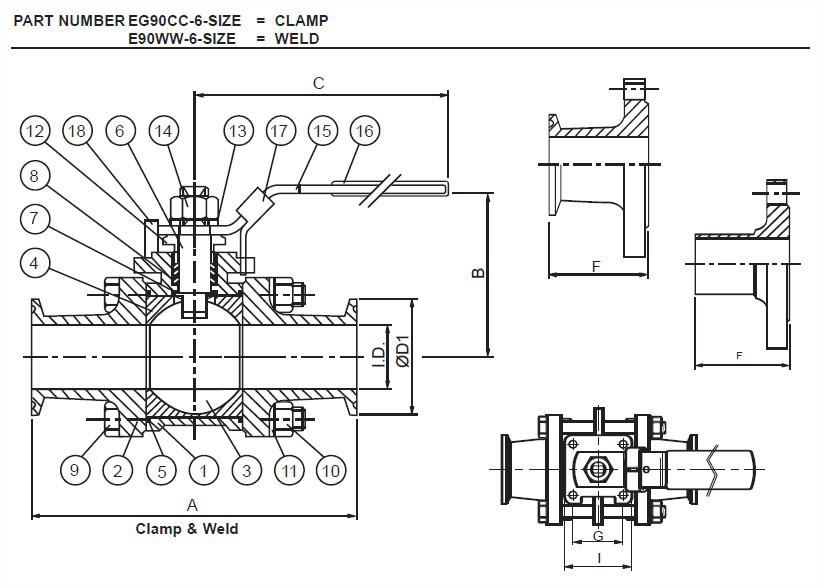

View Dimensions

Dimensions

E90WW - Weld End 2-Way Ball Valves

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	E, in.	E, mm.	F, in.	F, mm.	G, in.	G, mm.	T Nom Wall, in.
0.5	3.503	88.97619999999999	2.165	5.11	129.794	0.708	17.983199999999997	1.289	32.74059999999999	1	25.4	0.065
0.75	3.976	100.9904	2.362	5.11	129.794	0.728	18.4912	1.437	36.4998	1	25.4	0.065
1	4.488	113.99520000000001	2.716	6.49	164.846	0.885	22.479	1.574	39.9796	1.17	29.717999999999996	0.065
1.5	5.511	139.9794	3.307	7.67	194.81799999999998	1.165	29.590999999999998	1.712	43.4848	1.39	35.306	0.065
2	6.141	155.98139999999998	3.622	7.67	194.81799999999998	1.165	29.590999999999998	1.801	45.7454	1.39	35.306	0.065
2.5	7.756	197.0024	5	9.92	251.968	1.75	44.449999999999996	2.204	55.9816	1.95	49.529999999999994	0.065
3	9.015	228.981	5.354	9.92	251.968	1.75	44.449999999999996	2.54	64.51599999999999	1.95	49.529999999999994	0.065
4	9.567	243.0018	6.26	13.07	331.978	1.921	48.7934	2.385	60.57899999999999	2.83	71.88199999999999	0.083

Close

	VNE part number
OD Tube Size	CF8M (T316)
0.5	E90WW-6.5
0.75	E90WW-6.75
1	E90WW-61.0
1.5	E90WW-61.5
2	E90WW-62.0
2.5	E90WW-62.5
3	E90WW-63.0
4	E90WW-64.0

Material Type	CF8M (T316)
Size	1.5
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-61.5.step
Catalog File	valves.pdf
A, in.	5.511
A, mm.	139.9794
B, in.	3.307
C, in.	7.67
C, mm.	194.81799999999998
E, in.	1.165
E, mm.	29.590999999999998
F, in.	1.712
F, mm.	43.4848
G, in.	1.39
G, mm.	35.306
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-62.0.step
Catalog File	valves.pdf
A, in.	6.141
A, mm.	155.98139999999998
B, in.	3.622
C, in.	7.67
C, mm.	194.81799999999998
E, in.	1.165
E, mm.	29.590999999999998
F, in.	1.801
F, mm.	45.7454
G, in.	1.39
G, mm.	35.306
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2.5
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-62.5.step
Catalog File	valves.pdf
A, in.	7.756
A, mm.	197.0024
B, in.	5
C, in.	9.92
C, mm.	251.968
E, in.	1.75
E, mm.	44.449999999999996
F, in.	2.204
F, mm.	55.9816
G, in.	1.95
G, mm.	49.529999999999994
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	3
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	3
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-63.0.step
Catalog File	valves.pdf
A, in.	9.015
A, mm.	228.981
B, in.	5.354
C, in.	9.92
C, mm.	251.968
E, in.	1.75
E, mm.	44.449999999999996
F, in.	2.54
F, mm.	64.51599999999999
G, in.	1.95
G, mm.	49.529999999999994
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	4
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	4
Wall Thickness	0.083
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-64.0.step
Catalog File	valves.pdf
A, in.	9.567
A, mm.	243.0018
B, in.	6.26
C, in.	13.07
C, mm.	331.978
E, in.	1.921
E, mm.	48.7934
F, in.	2.385
F, mm.	60.57899999999999
G, in.	2.83
G, mm.	71.88199999999999
T Nom Wall, in.	0.083

Material Type	CF8M (T316)
Size	0.5
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-6.5.step
Catalog File	valves.pdf
A, in.	3.503
A, mm.	88.97619999999999
B, in.	2.165
C, in.	5.11
C, mm.	129.794
E, in.	0.708
E, mm.	17.983199999999997
F, in.	1.289
F, mm.	32.74059999999999
G, in.	1
G, mm.	25.4
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	0.75
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-6.75.step
Catalog File	valves.pdf
A, in.	3.976
A, mm.	100.9904
B, in.	2.362
C, in.	5.11
C, mm.	129.794
E, in.	0.728
E, mm.	18.4912
F, in.	1.437
F, mm.	36.4998
G, in.	1
G, mm.	25.4
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	1
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-61.0.step
Catalog File	valves.pdf
A, in.	4.488
A, mm.	113.99520000000001
B, in.	2.716
C, in.	6.49
C, mm.	164.846
E, in.	0.885
E, mm.	22.479
F, in.	1.574
F, mm.	39.9796
G, in.	1.17
G, mm.	29.717999999999996
T Nom Wall, in.	0.065
