EG14AM7 - Long Ferrule

Material Type
Size

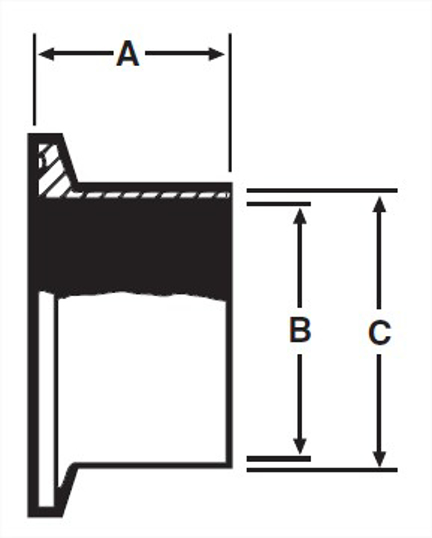

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
0.5	1.125	28.58	0.37	0.5	12.7	0.08
0.75	1.125	28.58	0.62	0.75	19.05	0.08
1	1.125	28.58	0.87	1	25.4	0.18
1.25	1.125	28.58	1.12	1.25	31.75	--
1.5	1.125	28.58	1.37	1.5	38.1	0.14
2	1.125	28.58	2.37	2	50.8	0.2
2.5	1.125	28.58	2.87	2.5	63.5	0.26
3	1.125	28.58	3.834	3	76.2	0.32
4	1.125	28.58	4.782	4	101.6	0.54
5	1.5	38.1	4.782	5	127	--
6	1.5	38.1	5.78	6	152.4	1.25
8	1.5	38.1	7.782	8	203.2	1.45
10	1.5	38.1	9.732	10	254	--

	VNE part number
OD Tube Size	304	316L
0.5	--	EG14AM7-6L.5
0.75	--	EG14AM7-6L.75
1	EG14AM71.0	EG14AM7-6L1.0
1.25	--	EG14AM7-6L1.25
1.5	EG14AM71.5	EG14AM7-6L1.5
2	EG14AM72.0	EG14AM7-6L2.0
2.5	EG14AM72.5	EG14AM7-6L2.5
3	EG14AM73.0	EG14AM7-6L3.0
4	EG14AM74.0	EG14AM7-6L4.0
5	--	EG14AM7-6L5.0
6	EG14AM76.0	EG14AM7-6L6.0
8	--	EG14AM7-6L8.0
10	--	EG14AM7-6L10.0

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM76.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-6-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.5
A, mm.	38.1
B, in.	5.78
C, in.	6
C, mm.	152.4
Product Weight	1.25

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM78.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-8-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.5
A, mm.	38.1
B, in.	7.782
C, in.	8
C, mm.	203.2
Product Weight	1.45

Material Type	316L
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	10
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM710.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-10-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.5
A, mm.	38.1
B, in.	9.732
C, in.	10
C, mm.	254

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM76.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-6-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.5
A, mm.	38.1
B, in.	5.78
C, in.	6
C, mm.	152.4
Product Weight	1.25

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.18

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1.5-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.14

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM72.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-2-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.37
C, in.	2
C, mm.	50.8
Product Weight	0.2

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM72.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-2.5-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.87
C, in.	2.5
C, mm.	63.5
Product Weight	0.26

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM73.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-3-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	3.834
C, in.	3
C, mm.	76.2
Product Weight	0.32

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM74.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-4-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	4.782
C, in.	4
C, mm.	101.6
Product Weight	0.54

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.18

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1.5-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.14

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM72.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-2-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.2

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM72.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-2.5-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.26

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM73.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-3-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.32

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM74.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-4-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	0.54

Material Type	316L
Size	5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	5
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM75.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-5-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.5
A, mm.	38.1
B, in.	4.782
C, in.	5
C, mm.	127

Material Type	316L
Size	0.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM7.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-.50-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	0.37
C, in.	0.5
C, mm.	12.7
Product Weight	0.08

Material Type	316L
Size	0.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM7.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-.75-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	0.62
C, in.	0.75
C, mm.	19.05
Product Weight	0.08

Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1.25-316
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.12
C, in.	1.25
C, mm.	31.75
