13MHP - High Pressure Clamp

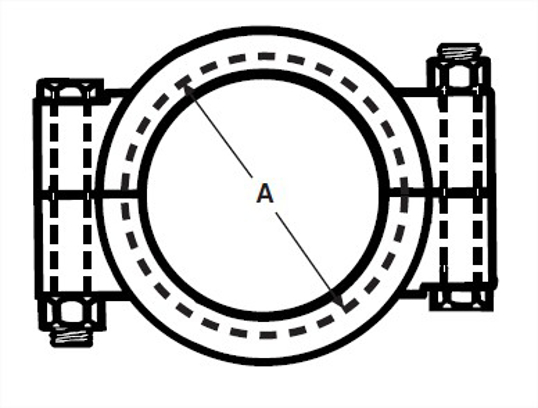

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
0.75	1.125	28.58	0.258
1.5	2.046	51.97	1.301
2	2.578	65.48	1.609
2.5	3.11	78.99	1.3
3	3.64	92.46	2.05
4	4.744	120.5	2.241
6	6.632	168.45	2.756
8	--	--	--
10	--	--	--

Size	0.75
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-5-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	1.125
A, mm.	28.58
Product Weight	0.258

Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-1-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	2.046
A, mm.	51.97
Product Weight	1.301

Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-1.5-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	2.578
A, mm.	65.48
Product Weight	1.609

Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-2-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	3.11
A, mm.	78.99
Product Weight	1.3

Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-3-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	3.64
A, mm.	92.46
Product Weight	2.05

Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-4-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	4.744
A, mm.	120.5
Product Weight	2.241

Size	6
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-6-304
Wayland Part Number	W13MHP
Dixon Part Number	13MHP
Sanitary Solutions Part Number	SS13MHP
Sanitube Part Number	13MHP
A, in.	6.632
A, mm.	168.45
Product Weight	2.756

Size	8
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	N/A
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-8-304
Wayland Part Number	W13MHP

Size	10
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	10
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	13MHP
Steel O’brien Part Number	13MHP-10-304
Wayland Part Number	W13MHP
