E14WQ - Q-Line Short Ferrule

E14WQ - Q-Line Short Ferrule

Material Type
Size

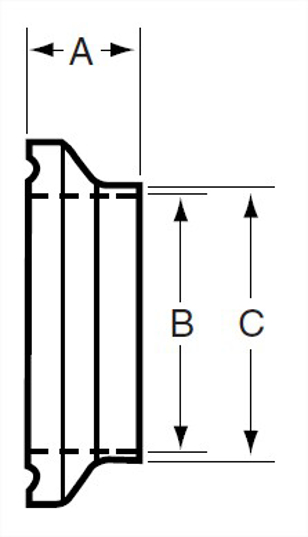

View Dimensions

Dimensions

E14WQ - Q-Line Short Ferrule

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	0.531	13.49	0.87	1	25.4	0.258
1.5	0.563	14.3	1.37	1.5	38.1	0.161
2	0.813	20.65	1.87	2	50.8	--
2.5	0.938	23.83	2.37	2.5	63.5	--
3	0.938	23.83	2.87	3	76.2	0.711
4	1	25.4	3.834	4	101.6	1

Close

	VNE part number
OD Tube Size	316L
1	E14WQ-6L1.0
1.5	E14WQ-6L1.5
2	E14WQ-6L2.0
2.5	E14WQ-6L2.5
3	E14WQ-6L3.0
4	E14WQ-6L4.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.531
A, mm.	13.49
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.258

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.563
A, mm.	14.3
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.161

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.813
A, mm.	20.65
B, in.	1.87
C, in.	2
C, mm.	50.8

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.938
A, mm.	23.83
B, in.	2.37
C, in.	2.5
C, mm.	63.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.938
A, mm.	23.83
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.711

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1

Click here to request 3D Step File
