E2F - Weld X Plain BS w/13H Nut 90 Degree Elbow

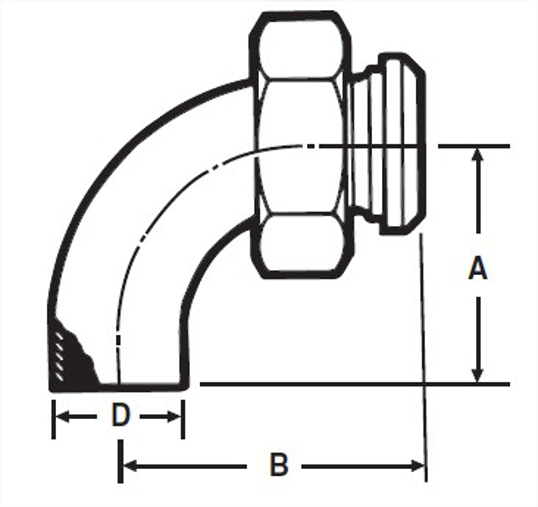

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	2.062	52.37	2.75	1	25.4	0.065	0.6
1.5	2.937	74.6	3.656	1.5	38.1	0.065	1.02
2	4.062	103.17	4.781	2	50.8	0.065	1.86
2.5	5.187	131.75	6.031	2.5	63.5	0.065	2.88
3	6.937	176.2	7.218	3	76.2	0.065	4.14
4	8.937	227	9.531	4	101.6	0.083	8.48

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-1-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	2.062
A, mm.	52.37
B, in.	2.75
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.6

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-1.5-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	2.937
A, mm.	74.6
B, in.	3.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	1.02

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-2-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	4.062
A, mm.	103.17
B, in.	4.781
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.86

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-2.5-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	5.187
A, mm.	131.75
B, in.	6.031
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.88

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-3-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	6.937
A, mm.	176.2
B, in.	7.218
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	4.14

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2F4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-4-7-304
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	8.937
A, mm.	227
B, in.	9.531
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	8.48

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-1-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	2.062
A, mm.	52.37
B, in.	2.75
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.6

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-1.5-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	2.937
A, mm.	74.6
B, in.	3.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	1.02

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-2-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	4.062
A, mm.	103.17
B, in.	4.781
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.86

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-2.5-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	5.187
A, mm.	131.75
B, in.	6.031
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.88

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-3-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	6.937
A, mm.	176.2
B, in.	7.218
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	4.14

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2F4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2F
Steel O’brien Part Number	L2F-4-7-316
Wayland Part Number	WL2F
Dixon Part Number	B2F
Sanitary Solutions Part Number	SSL2F
Sanitube Part Number	L2F
A, in.	8.937
A, mm.	227
B, in.	9.531
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	8.48
