E16AQ - Q-Line Solid End Cap

E16AQ - Q-Line Solid End Cap

Material Type
Size

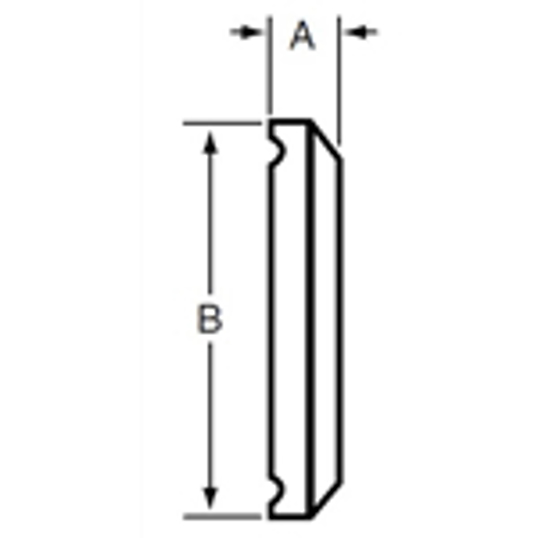

View Dimensions

Dimensions

E16AQ - Q-Line Solid End Cap

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	0.313	7.95	2	0.25
1.5	0.313	7.95	2	--
2	0.438	11.13	2.648	--
2.5	0.5	12.7	3.313	1.1
3	0.5	12.7	3.87	1.55
4	0.625	15.88	4.87	--

Close

	VNE part number
OD Tube Size	316L
1	E16AQ14Q-6L1.0
1.5	E16AQ14Q-6L1.5
2	E16AQ14Q-6L2.0
2.5	E16AQ14Q-6L2.5
3	E16AQ14Q-6L3.0
4	E16AQ14Q-6L4.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.313
A, mm.	7.95
B, in.	2
Product Weight	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.313
A, mm.	7.95
B, in.	2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.438
A, mm.	11.13
B, in.	2.648

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	3.313
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	3.87
Product Weight	1.55

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Q-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.625
A, mm.	15.88
B, in.	4.87

Click here to request 3D Step File
