2K - Threaded BS X Thread BS 45 Degree Elbow

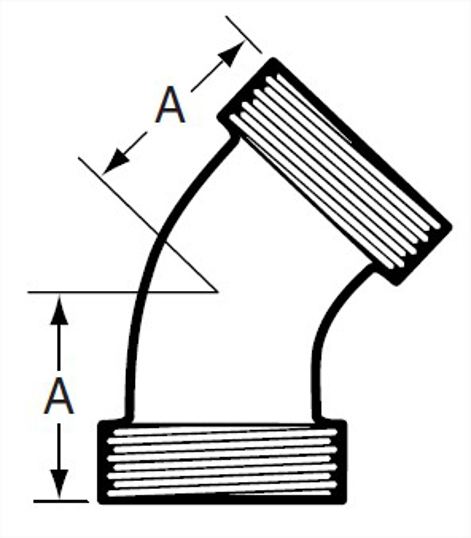

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	2	50.8	0.4
1.5	2.312	58.72	0.66
2	2.687	68.25	1.02
2.5	3.25	82.55	1.62
3	3.75	95.25	2.1
4	4.5	114.3	4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2
A, mm.	50.8
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2.312
A, mm.	58.72
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2.687
A, mm.	68.25
Product Weight	1.02

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	3.25
A, mm.	82.55
Product Weight	1.62

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	3.75
A, mm.	95.25
Product Weight	2.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	4.5
A, mm.	114.3
Product Weight	4

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2
A, mm.	50.8
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2.312
A, mm.	58.72
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	2.687
A, mm.	68.25
Product Weight	1.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	3.25
A, mm.	82.55
Product Weight	1.62

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	3.75
A, mm.	95.25
Product Weight	2.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2K
Wayland Part Number	W2K
Dixon Part Number	B2K
Sanitary Solutions Part Number	SS2K
Sanitube Part Number	2K
A, in.	4.5
A, mm.	114.3
Product Weight	4
