TE2C92 - BPE Clamp X AWF 92 Degree Elbow 6MO UNS N08367

Size
Surface Finish

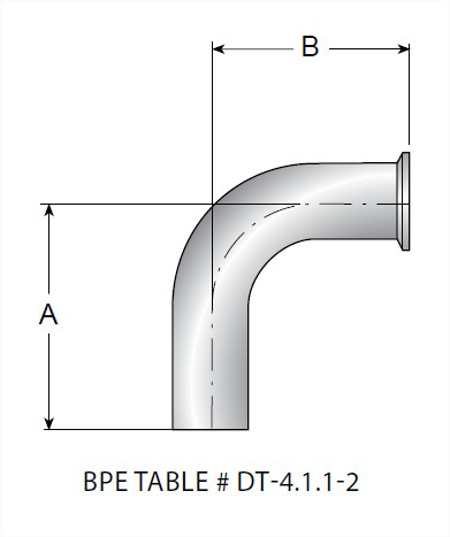

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
0.5	2.98	75.69	1.66	0.121
0.75	2.98	75.69	1.66	0.141
1	2.98	75.69	2.05	0.385
1.5	3.73	94.74	2.73	0.523
2	4.77	121.16	3.47	0.891
2.5	5.43	137.92	4.1	1.32
3	6.17	156.72	4.83	1.766
4	7.91	200.91	6.42	3.593

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	6MO
0.5	TE2C926MO.5-PL
0.75	TE2C926MO.75-PL
1	TE2C926MO1.0-PL
1.5	TE2C926MO1.5-PL
2	TE2C926MO2.0-PL
2.5	TE2C926MO2.5-PL
3	TE2C926MO3.0-PL
4	TE2C926MO4.0-PL

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	6MO
0.5	TE2C926MO.5-PO
0.75	TE2C926MO.75-PO
1	TE2C926MO1.0-PO
1.5	TE2C926MO1.5-PO
2	TE2C926MO2.0-PO
2.5	TE2C926MO2.5-PO
3	TE2C926MO3.0-PO
4	TE2C926MO4.0-PO

Size	0.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	1.66
Product Weight	0.121

Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L.75-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	1.66
Product Weight	0.141

Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L1.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	2.05
Product Weight	0.385

Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L1.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	3.73
A, mm.	94.74
B, in.	2.73
Product Weight	0.523

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L2.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	4.77
A, mm.	121.16
B, in.	3.47
Product Weight	0.891

Size	2.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L2.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	5.43
A, mm.	137.92
B, in.	4.1
Product Weight	1.32

Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L3.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	6.17
A, mm.	156.72
B, in.	4.83
Product Weight	1.766

Size	4
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	4
Wall Thickness	0.083
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L4.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	7.91
A, mm.	200.91
B, in.	6.42
Product Weight	3.593

Size	4
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	4
Wall Thickness	0.083
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L4.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	7.91
A, mm.	200.91
B, in.	6.42
Product Weight	3.593

Size	3
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	3
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L3.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	6.17
A, mm.	156.72
B, in.	4.83
Product Weight	1.766

Size	2.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L2.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	5.43
A, mm.	137.92
B, in.	4.1
Product Weight	1.32

Size	2
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L2.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	4.77
A, mm.	121.16
B, in.	3.47
Product Weight	0.891

Size	1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L1.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	3.73
A, mm.	94.74
B, in.	2.73
Product Weight	0.523

Size	1
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L1.0-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	2.05
Product Weight	0.385

Size	0.75
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L.75-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	1.66
Product Weight	0.141

Size	0.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	L2CM92
A, in.	2.98
A, mm.	75.69
B, in.	1.66
Product Weight	0.121
