TEG7S - BPE Clamp Short Outlet Tee Alloy 22 UNS N06022

Size
Surface Finish

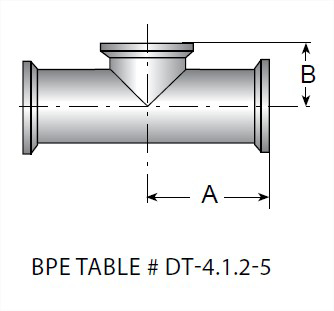

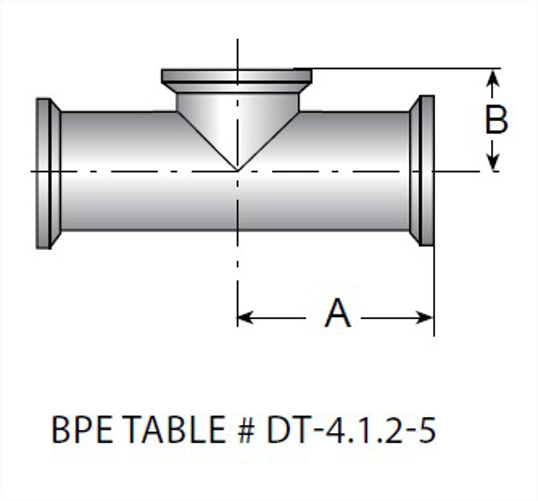

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
0.5	2.25	57.15	1	0.234
0.75	2.375	60.33	1.125	0.297
1	2.625	66.68	1.125	0.734
1.5	2.875	73.03	1.375	0.727
2	3.375	85.73	1.625	1.063
3	3.875	98.43	2.125	1.859

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
0.5	TEG7SA22.5-PL
0.75	TEG7SA22.75-PL
1	TEG7SA221.0-PL
1.5	TEG7SA221.5-PL
2	TEG7SA222.0-PL
3	TEG7SA223.0-PL

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
0.5	TEG7SA22.5-PO
0.75	TEG7SA22.75-PO
1	TEG7SA221.0-PO
1.5	TEG7SA221.5-PO
2	TEG7SA222.0-PO
3	TEG7SA223.0-PO

Cad Model File	Click here to request 3D Step File
Size	0.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	2.25
A, mm.	57.15
B, in.	1
Product Weight	0.234

Cad Model File	Click here to request 3D Step File
Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	2.375
A, mm.	60.33
B, in.	1.125
Product Weight	0.297

Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	2.625
A, mm.	66.68
B, in.	1.125
Product Weight	0.734

Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	2.875
A, mm.	73.03
B, in.	1.375
Product Weight	0.727

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3.375
A, mm.	85.73
B, in.	1.625
Product Weight	1.063

Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3.875
A, mm.	98.43
B, in.	2.125
Product Weight	1.859

Size	3
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3.875
A, mm.	98.43
B, in.	2.125
Product Weight	1.859

Size	2
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3.375
A, mm.	85.73
B, in.	1.625
Product Weight	1.063

Size	1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	2.875
A, mm.	73.03
B, in.	1.375
Product Weight	0.727

Size	1
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7S6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	2.625
A, mm.	66.68
B, in.	1.125
Product Weight	0.734

Cad Model File	Click here to request 3D Step File
Size	0.75
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	2.375
A, mm.	60.33
B, in.	1.125
Product Weight	0.297

Cad Model File	Click here to request 3D Step File
Size	0.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	2.25
A, mm.	57.15
B, in.	1
Product Weight	0.234
