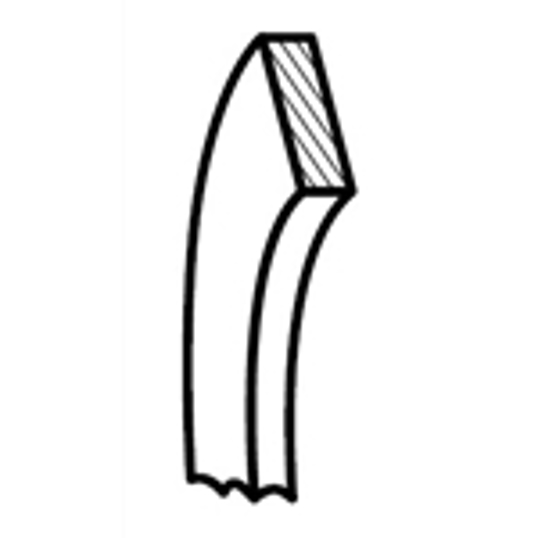

E40IH - Viton E-Line Gasket

E40IH - Viton E-Line Gasket

Size

View Dimensions

Dimensions

E40IH - Viton E-Line Gasket

OD Tube Size	Product Weight
1	0.01
1.5	0.01
2	0.01
2.5	0.01
3	0.01
4	0.01
6	--

Close

	VNE part number
OD Tube Size	Viton
1	E40IV1.0
1.5	E40IV1.5
2	E40IV2.0
2.5	E40IV2.5
3	E40IV3.0
4	E40IV4.0
6	E40IV6.0

Cad Model File	Click here to request 3D Step File
Size	1
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	1
Wall Thickness	0.065
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	1.5
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	2
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	2
Wall Thickness	0.065
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	2.5
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	3
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	3
Wall Thickness	0.065
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	4
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	4
Wall Thickness	0.083
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Size	6
ID / OD Polish	Gasket ID / Gasket OD
Connections	E-Line Gasket
OD Tube Size	6
Wall Thickness	0.109
Material-Type	Viton
Material Test Reports	COC - FDA and 3A if Applicable
Passivated	N/A
Catalog File	Fittings Catalog.pdf

Click here to request 3D Step File
