E7AI - Female E-Line X Female E-line X Male E-Line Tee

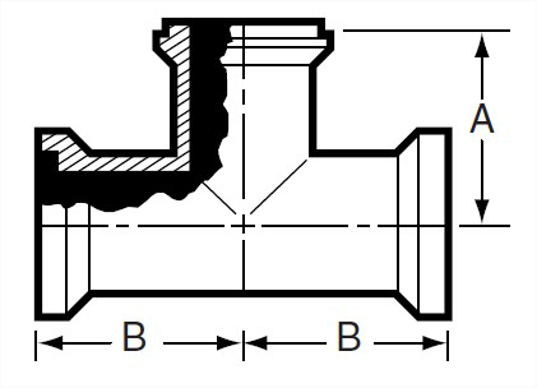

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.687	42.85	1.875	1
1.5	2.406	61.11	2.593	0.86
2	2.812	71.42	3.062	1.68
2.5	3.156	80.16	3.468	2.62
3	3.5	88.9	3.812	3.28
4	4.656	118.26	4.968	5.32
6	6.437	163.5	6.75	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	1.687
A, mm.	42.85
B, in.	1.875
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	2.406
A, mm.	61.11
B, in.	2.593
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	2.812
A, mm.	71.42
B, in.	3.062
Product Weight	1.68

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	3.156
A, mm.	80.16
B, in.	3.468
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	3.5
A, mm.	88.9
B, in.	3.812
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	4.656
A, mm.	118.26
B, in.	4.968
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	6.437
A, mm.	163.5
B, in.	6.75

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	1.687
A, mm.	42.85
B, in.	1.875
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	2.406
A, mm.	61.11
B, in.	2.593
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	2.812
A, mm.	71.42
B, in.	3.062
Product Weight	1.68

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	3.156
A, mm.	80.16
B, in.	3.468
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	3.5
A, mm.	88.9
B, in.	3.812
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	4.656
A, mm.	118.26
B, in.	4.968
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI
A, in.	6.437
A, mm.	163.5
B, in.	6.75
