15TRJP - Thread John Perry Ferrule Short

15TRJP - Thread John Perry Ferrule Short

Material Type
Size

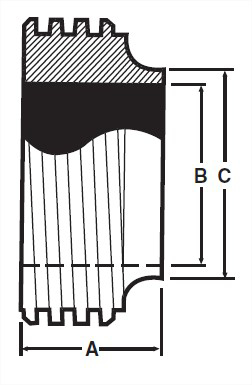

View Dimensions

Dimensions

15TRJP - Thread John Perry Ferrule Short

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	0.625	15.88	0.87	1	25.4	0.12
1.5	0.625	15.88	1.37	1.5	38.1	0.18
2	0.684	17.37	1.87	2	50.8	0.32
2.5	0.743	18.87	2.37	2.5	63.5	0.4
3	0.806	20.47	2.87	3	76.2	0.58
4	0.9	22.86	3.834	4	101.6	1.02

Close

	VNE part number
OD Tube Size	316L
1	15TRJP-6L1.0
1.5	15TRJP-6L1.5
2	15TRJP-6L2.0
2.5	15TRJP-6L2.5
3	15TRJP-6L3.0
4	15TRJP-6L4.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.625
A, mm.	15.88
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.625
A, mm.	15.88
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.684
A, mm.	17.37
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.743
A, mm.	18.87
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.806
A, mm.	20.47
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded John Perry X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.9
A, mm.	22.86
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.02
