E7RWWW - Weld Reducing Tee

Material Type
Size

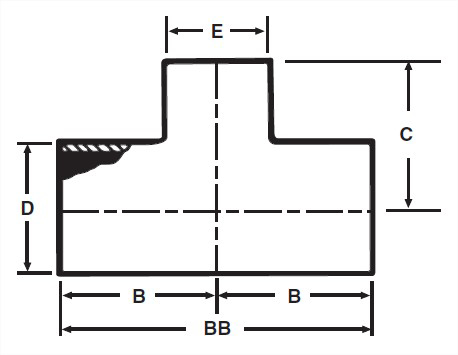

View Dimensions

Dimensions

OD Tube Size	B, in.	C, in.	C, mm.	T Nom Wall, in.	BB, in.	BB, mm.	Product Weight
1.5X1.0	1.65	1.375	34.93	0.065	3.312	84.12	0.32
2.0X1.0	2.06	1.625	41.28	0.065	4.125	104.78	0.54
2.0X1.5	2.06	1.906	48.41	0.065	4.125	104.78	0.58
2.5X1.0	2.34	1.875	47.63	0.065	4.687	119.05	0.88
2.5X1.5	2.34	2.15	54.61	0.065	4.687	119.05	0.74
2.5X2.0	2.34	2.312	58.72	0.065	4.687	119.05	0.74
3.0X1.0	2.59	2.125	53.98	0.065	5.187	131.75	--
3.0X1.5	2.59	2.4	60.96	0.065	5.187	131.75	1.2
3.0X2.0	2.59	2.562	65.07	0.065	5.187	131.75	0.96
3.0X2.5	2.59	2.59	65.79	0.065	5.187	131.75	1.06
4.0X1.5	3.43	4.906	124.61	0.083 x 0.065	6.875	174.63	--
4.0X2.0	3.43	3.09	78.49	0.083 x 0.066	6.875	174.63	2.64
4.0X2.5	3.43	3.09	78.49	0.083 x 0.067	6.875	174.63	2.6
4.0X3.0	3.59	3.09	78.49	0.083 x 0.068	6.875	174.63	2.64
6.0X2.0	5.625	5.625	142.88	0.109 x 0.065	11.25	285.75	--
6.0X3.0	5.625	5.625	142.88	0.109 x 0.066	11.25	285.75	--
6.0X4.0	5.625	5.625	142.88	0.109 x 0.083	11.25	285.75	--

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E7RWWW1.5X1.0	E7RWWW-6L1.5X1.0
2.0X1.0	E7RWWW2.0X1.0	E7RWWW-6L2.0X1.0
2.0X1.5	E7RWWW2.0X1.5	E7RWWW-6L2.0X1.5
2.5X1.0	E7RWWW2.5X1.0	E7RWWW-6L2.5X1.0
2.5X1.5	E7RWWW2.5X1.5	E7RWWW-6L2.5X1.5
2.5X2.0	E7RWWW2.5X2.0	E7RWWW-6L2.5X2.0
3.0X1.0	E7RWWW3.0X1.0	E7RWWW-6L3.0X1.0
3.0X1.5	E7RWWW3.0X1.5	E7RWWW-6L3.0X1.5
3.0X2.0	E7RWWW3.0X2.0	E7RWWW-6L3.0X2.0
3.0X2.5	E7RWWW3.0X2.5	E7RWWW-6L3.0X2.5
4.0X1.5	E7RWWW4.0X1.5	E7RWWW-6L4.0X1.5
4.0X2.0	E7RWWW4.0X2.0	E7RWWW-6L4.0X2.0
4.0X2.5	E7RWWW4.0X2.5	E7RWWW-6L4.0X2.5
4.0X3.0	E7RWWW4.0X3.0	E7RWWW-6L4.0X3.0
6.0X2.0	E7RWWW6.0X2.0	E7RWWW-6L6.0X2.0
6.0X3.0	E7RWWW6.0X3.0	E7RWWW-6L6.0X3.0
6.0X4.0	E7RWWW6.0X4.0	E7RWWW-6L6.0X4.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-1.5X1-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	1.65
C, in.	1.375
C, mm.	34.93
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.32

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2X1-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.06
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.54

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2X1.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.06
C, in.	1.906
C, mm.	48.41
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.58

Material Type	304
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X1-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.88

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X1.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	2.15
C, mm.	54.61
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.74

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X2-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	2.312
C, mm.	58.72
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.74

Material Type	304
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW3.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X1-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.125
C, mm.	53.98
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75

Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X1.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.4
C, mm.	60.96
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.2

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X2-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.562
C, mm.	65.07
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	0.96

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X2.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.59
C, mm.	65.79
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.06

Material Type	304
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW4.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X1.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	4.906
C, mm.	124.61
T Nom Wall, in.	0.083 x 0.065
BB, in.	6.875
BB, mm.	174.63

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X2-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.066
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.64

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X2.5-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.067
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.6

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X3-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.59
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.068
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.64

Material Type	304
Size	6.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X2.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW6.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X2-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.065
BB, in.	11.25
BB, mm.	285.75

Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X3-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.066
BB, in.	11.25
BB, mm.	285.75

Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7RWWW6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X4-7-304
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.083
BB, in.	11.25
BB, mm.	285.75

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-1.5X1-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	1.65
C, in.	1.375
C, mm.	34.93
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2X1-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.06
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2X1.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.06
C, in.	1.906
C, mm.	48.41
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78

Material Type	316L
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X1-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X1.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	2.15
C, mm.	54.61
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-2.5X2-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.34
C, in.	2.312
C, mm.	58.72
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05

Material Type	316L
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW3.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X1-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.125
C, mm.	53.98
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75

Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X1.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.4
C, mm.	60.96
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X2-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.562
C, mm.	65.07
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-3X2.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	2.59
C, in.	2.59
C, mm.	65.79
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75

Material Type	316L
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW4.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X1.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	4.906
C, mm.	124.61
T Nom Wall, in.	0.083 x 0.065
BB, in.	6.875
BB, mm.	174.63

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X2-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.065
BB, in.	6.875
BB, mm.	174.63

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X2.5-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.43
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.065
BB, in.	6.875
BB, mm.	174.63

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-4X3-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	3.59
C, in.	3.09
C, mm.	78.49
T Nom Wall, in.	0.083 x 0.065
BB, in.	6.875
BB, mm.	174.63

Material Type	316L
Size	6.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X2.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW6.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X2-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.065
BB, in.	11.25
BB, mm.	285.75

Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X3-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.065
BB, in.	11.25
BB, mm.	285.75

Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-6X4-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT
B, in.	5.625
C, in.	5.625
C, mm.	142.88
T Nom Wall, in.	0.109 x 0.083
BB, in.	11.25
BB, mm.	285.75
