E2HI - Male E-Line 45 Degree Elbow

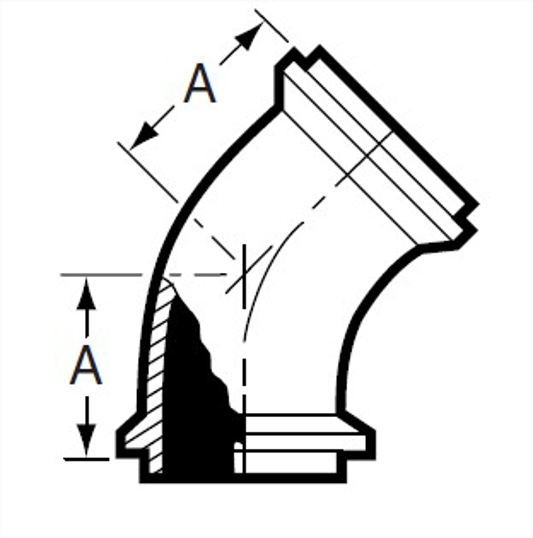

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.218	30.94	0.6
1.5	1.687	42.85	0.53
2	2.031	51.59	0.74
2.5	2.406	61.11	1.48
3	2.781	70.64	1.92
4	3.531	89.69	3.4
6	4.562	115.87	--

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	1.218
A, mm.	30.94
Product Weight	0.6

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	1.687
A, mm.	42.85
Product Weight	0.53

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.031
A, mm.	51.59
Product Weight	0.74

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.406
A, mm.	61.11
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.781
A, mm.	70.64
Product Weight	1.92

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	3.531
A, mm.	89.69
Product Weight	3.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	4.562
A, mm.	115.87

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	1.218
A, mm.	30.94
Product Weight	0.6

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	1.687
A, mm.	42.85
Product Weight	0.53

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.031
A, mm.	51.59
Product Weight	0.74

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.406
A, mm.	61.11
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	2.781
A, mm.	70.64
Product Weight	1.92

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	3.531
A, mm.	89.69
Product Weight	3.4

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2HI
Wayland Part Number	W2HI
Dixon Part Number	B2HI
Sanitary Solutions Part Number	SS2HI
Sanitube Part Number	2HI
A, in.	4.562
A, mm.	115.87
