Din X Tube Transition Adapter

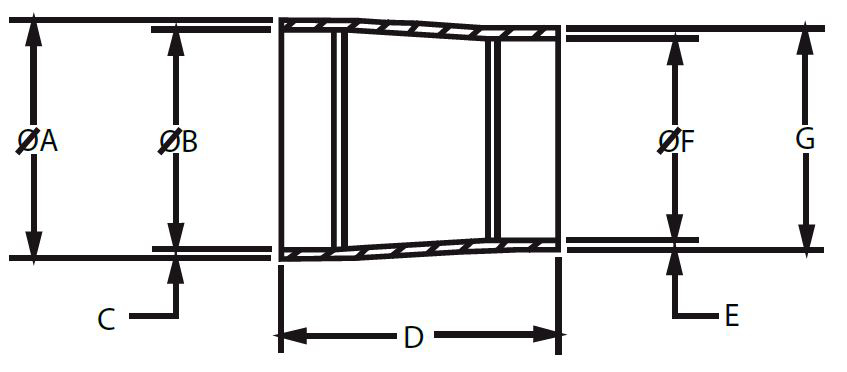

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	F, in.	F, mm.	G, in.	G, mm.
DN4X.25	0.25	6.35	0.18	0.035	0.89	1	25.4	0.04	1	0.16	4	0.24	6
DN8X.375	0.39	10	0.31	0.04	1	1	25.4	0.035	0.89	0.305	7.75	0.375	9.53
DN6X.375	0.375	9.53	0.305	0.035	0.89	1	25.4	0.04	1	0.24	6	0.31	8
DN10X0.5	0.51	13	0.39	0.06	1.5	1	25.4	0.065	1.65	0.37	9.4	0.5	12.7
DN15X.75	0.75	19.05	0.62	0.065	1.65	1.5	38.1	0.06	1.5	0.63	16	0.75	19
DN20X1.0	1	25.4	0.87	0.065	1.65	1.5	38.1	0.06	1.5	0.79	20	0.91	23
DN25X1.0	1.14	29	1.02	0.06	1.5	1.5	38.1	0.065	1.65	0.87	22.1	1	25.4
DN32X1.5	1.5	38.1	1.37	0.065	1.65	1.5	38.1	0.06	1.5	1.26	32	1.38	35
DN40X1.5	1.61	41	1.5	0.06	1.5	2	50.8	0.065	1.65	1.37	34.8	1.5	38.1
DN50X2.0	2.09	53	1.97	0.06	1.5	2	50.8	0.065	1.65	1.87	47.5	2	50.8
DN65X2.5	2.76	70	2.6	0.08	2	2	50.8	0.065	1.65	2.37	60.2	2.5	63.5
DN80X3.0	3.35	85	3.19	0.08	2	2	50.8	0.065	1.65	2.87	72.9	3	76.2
DN100X4.0	4.09	104	3.94	0.08	2	2	50.8	0.083	2.11	3.834	97.38	4	101.6

Cad Model File	Click here to request 3D Step File
Size	DN4X.25
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN4X.25
Wall Thickness	1
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.25
A, mm.	6.35
B, in.	0.18
C, in.	0.035
C, mm.	0.89
D, in.	1
D, mm.	25.4
E, in.	0.04
E, mm.	1
F, in.	0.16
F, mm.	4
G, in.	0.24
G, mm.	6

Cad Model File	Click here to request 3D Step File
Size	DN8X.375
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN8X.375
Wall Thickness	0.035
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.39
A, mm.	10
B, in.	0.31
C, in.	0.04
C, mm.	1
D, in.	1
D, mm.	25.4
E, in.	0.035
E, mm.	0.89
F, in.	0.305
F, mm.	7.75
G, in.	0.375
G, mm.	9.53

Cad Model File	Click here to request 3D Step File
Size	DN6X.375
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN6X.375
Wall Thickness	1
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.375
A, mm.	9.53
B, in.	0.305
C, in.	0.035
C, mm.	0.89
D, in.	1
D, mm.	25.4
E, in.	0.04
E, mm.	1
F, in.	0.24
F, mm.	6
G, in.	0.31
G, mm.	8

Cad Model File	Click here to request 3D Step File
Size	DN10X0.5
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN10X0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.51
A, mm.	13
B, in.	0.39
C, in.	0.06
C, mm.	1.5
D, in.	1
D, mm.	25.4
E, in.	0.065
E, mm.	1.65
F, in.	0.37
F, mm.	9.4
G, in.	0.5
G, mm.	12.7

Cad Model File	Click here to request 3D Step File
Size	DN15X.75
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN15X.75
Wall Thickness	1.5
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.5
F, in.	0.63
F, mm.	16
G, in.	0.75
G, mm.	19

Cad Model File	Click here to request 3D Step File
Size	DN20X1.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN20X1.0
Wall Thickness	1.5
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.5
F, in.	0.79
F, mm.	20
G, in.	0.91
G, mm.	23

Cad Model File	Click here to request 3D Step File
Size	DN25X1.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN25X1.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.14
A, mm.	29
B, in.	1.02
C, in.	0.06
C, mm.	1.5
D, in.	1.5
D, mm.	38.1
E, in.	0.065
E, mm.	1.65
F, in.	0.87
F, mm.	22.1
G, in.	1
G, mm.	25.4

Cad Model File	Click here to request 3D Step File
Size	DN32X1.5
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN32X1.5
Wall Thickness	1.5
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.5
F, in.	1.26
F, mm.	32
G, in.	1.38
G, mm.	35

Cad Model File	Click here to request 3D Step File
Size	DN40X1.5
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN40X1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.61
A, mm.	41
B, in.	1.5
C, in.	0.06
C, mm.	1.5
D, in.	2
D, mm.	50.8
E, in.	0.065
E, mm.	1.65
F, in.	1.37
F, mm.	34.8
G, in.	1.5
G, mm.	38.1

Cad Model File	Click here to request 3D Step File
Size	DN50X2.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN50X2.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	2.09
A, mm.	53
B, in.	1.97
C, in.	0.06
C, mm.	1.5
D, in.	2
D, mm.	50.8
E, in.	0.065
E, mm.	1.65
F, in.	1.87
F, mm.	47.5
G, in.	2
G, mm.	50.8

Cad Model File	Click here to request 3D Step File
Size	DN65X2.5
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN65X2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	2.76
A, mm.	70
B, in.	2.6
C, in.	0.08
C, mm.	2
D, in.	2
D, mm.	50.8
E, in.	0.065
E, mm.	1.65
F, in.	2.37
F, mm.	60.2
G, in.	2.5
G, mm.	63.5

Cad Model File	Click here to request 3D Step File
Size	DN80X3.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN80X3.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	3.35
A, mm.	85
B, in.	3.19
C, in.	0.08
C, mm.	2
D, in.	2
D, mm.	50.8
E, in.	0.065
E, mm.	1.65
F, in.	2.87
F, mm.	72.9
G, in.	3
G, mm.	76.2

Cad Model File	Click here to request 3D Step File
Size	DN100X4.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN100X4.0
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	4.09
A, mm.	104
B, in.	3.94
C, in.	0.08
C, mm.	2
D, in.	2
D, mm.	50.8
E, in.	0.083
E, mm.	2.11
F, in.	3.834
F, mm.	97.38
G, in.	4
G, mm.	101.6
